- +25 4 % $23.03
- +50 6 % $22.57
- +100 8 % $22.12
- +300 10 % $21.66
- +500 11 % $21.20

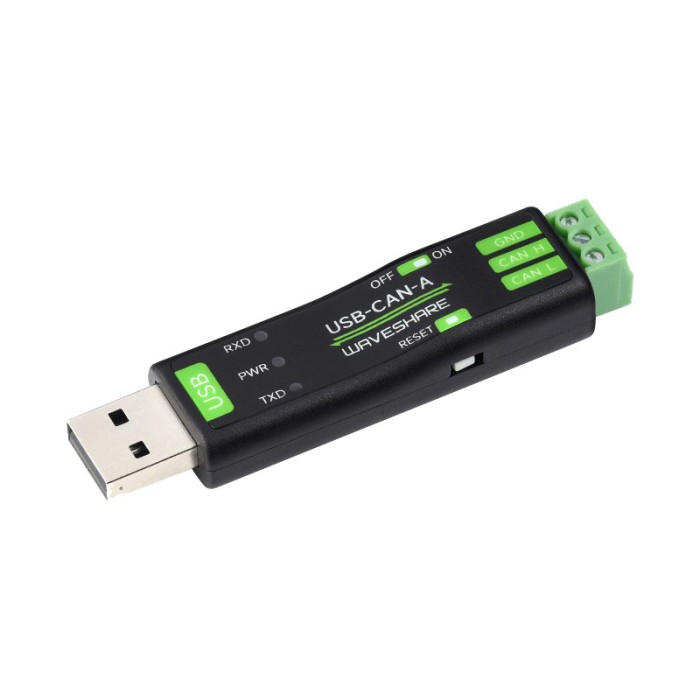

The Waveshare USB to CAN Adapter is a versatile industrial-grade interface converter designed to connect a computer via USB to a CAN (Controller Area Network) bus. This adapter supports both CAN2.0A (standard frame) and CAN2.0B (extended frame), and offers configurable baud rates between 5Kbps and 1Mbps. It features multiple working modes, data sending and receiving modes, and supports easy CAN bus monitoring and control. Built with a robust STM32 chip, it ensures reliable communication, making it suitable for industrial environments and development projects requiring CAN bus communication.
Specifications of Waveshare USB to CAN Adapter
-
CAN Support: CAN2.0A (standard frame), CAN2.0B (extended frame)
-
CAN Baud Rate: Configurable from 5Kbps to 1Mbps
-
Working Modes:
-
Normal mode
-
Loopback mode
-
Silent mode
-
Silent loopback mode
-
-
Data Sending Modes:
-
Single frame
-
Multiple frames
-
Manual
-
Regular
-
Cyclic
-
-
Data Receiving Modes: Configurable to receive data from specific CAN IDs or automatically respond to certain IDs
-
USB Virtual COM Baud Rate: Configurable from 9600 to 2000000bps (default 2000000bps)
-
Communication Chip: STM32
-
Protection: Onboard TVS for surge and transient voltage protection
-
Host Software: Compatible with Windows for easy CAN bus control
-
File Formats: CAN data can be saved as TXT or Excel
-
Additional Features: CAN bus detection, time-stamped data sending/receiving
