Waveshare Solar Power Management Module with 14500 Lithium Battery- 5W
$14.5000
In stock
SKU
BAT-08-023
Volume discounts:
- +25 4 % $13.9200
- +50 6 % $13.6200
- +100 8 % $13.3300
- +300 10 % $13.0400
- +500 12 % $12.7500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
5V 1A USB Mobile Power Bank Box for 1x18650 Li-ion Battery - Black / White Previous

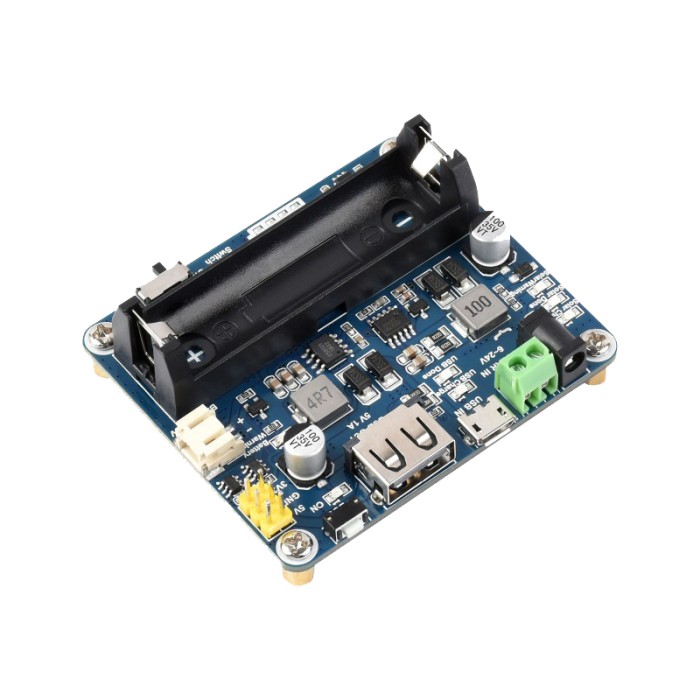

The Waveshare Solar Power Management Module with 14500 Lithium Battery is a solar power management module for 6V to 24V solar panels. It supports charging a 3.7V rechargeable Li battery through a solar panel or USB connection. Regulated outputs are available at 5V/1A through USB and 3.3V/1A through the pin header. MPPT functionality is included for charging efficiency. The module also includes multiple protection circuits, status LEDs, and high-capacity capacitors.
Features of Waveshare Solar Power Management Module - 5W, 14500
- MPPT charging support
- Dual charging input options
- Regulated 5V and 3.3V outputs
- Multiple protection circuits
- Status LED indicators
- 14500 battery support
Specifications of Waveshare Solar Power Management Module - 5W, 14500
- Input Voltage: 6V~24V (solar panel)
- DC-002 jack or screw terminal input
- Battery: 3.7V 14500 Li-ion battery
- Output Voltage: 5V/1A (USB)
- Output Voltage: 3.3V/1A (pin header)
- Function: MPPT (Maximum Power Point Tracking)
- Protection Circuits: Over charge, over discharge, reverse protection, overheat, over current
- Charging Cutoff Voltage: 4.2V
- Over Discharging Protection Voltage: 2.9V
- Indicators: Multiple LEDs for monitoring solar panel and battery status
- Capacitors: High capacity aluminum electrolytic and SMD ceramic capacitors
- USB Recharging Efficiency: ~82%
- Batteries Boost Output Efficiency: ~86%
- Quiescent Current: <2mA
- Operating Temperature: -40~85C
- Battery Holder: 14500 battery holder and PH2.0 connector
- Dimensions: 65x56x18mm
How to Use Waveshare Solar Power Management Module - 5W, 14500
- Connect a 6V to 24V solar panel to the DC-002 jack input or screw terminal input.
- Insert a 3.7V rechargeable Li battery into the 14500 battery holder or connect it via the PH2.0 connector.
- Connect a USB cable if USB charging is required.
- Use the MPPT SET switch to select the level closest to the input level.
- Check the LED indicators for solar panel and battery status.
- Use the USB port for 5V output or the pin header for 3.3V or 5V output.
More Info
- Manufacturer Website
- Wiki page of Product
| Function | Power Bank |
|---|---|
| Charging Voltage (Pack) | 4.2V |
| Supported Battery Type | Li-ion |
| Overcharge Detection Voltage (per Cell) | 4.2V |
| Over-discharge Detection Voltage (per Cell) | 2.9V |
| Cell Count | 1 |
| Input Voltage (V) | 6V~24V |
| Output Voltage (V) | 3.3V, 5V |
| Output Current (A) | 1A |
| Connector | DC-002 jack, screw terminal, PH2.0 connector |
| Fast Charge Protocol | No |
| USB Connector | Micro USB |
| Port Configuration | USB, pin header |
| Protection | Over charge,over discharge,reverse protection,overheat,over current |
| Efficiency (%) | 82%, 86% |
| Indicator LEDs | Status LEDs for solar panel and battery status |
| Dimensions (mm) | 65x56x18mm |
| Operating Temp (°C) | -40 to 85 |
