WaveShare RP2040-LCD-0.96 MCU Board with LCD Based on Raspberry Pi Pico RP2040
$11.2000
In stock
SKU
MIN-01-151
Volume discounts:
- +25 10 % $10.0800
- +50 12 % $9.8700
- +100 14 % $9.6500
- +300 16 % $9.4400
- +500 18 % $9.2300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Raspberry Pi Compute Module 4 - CM4 Previous

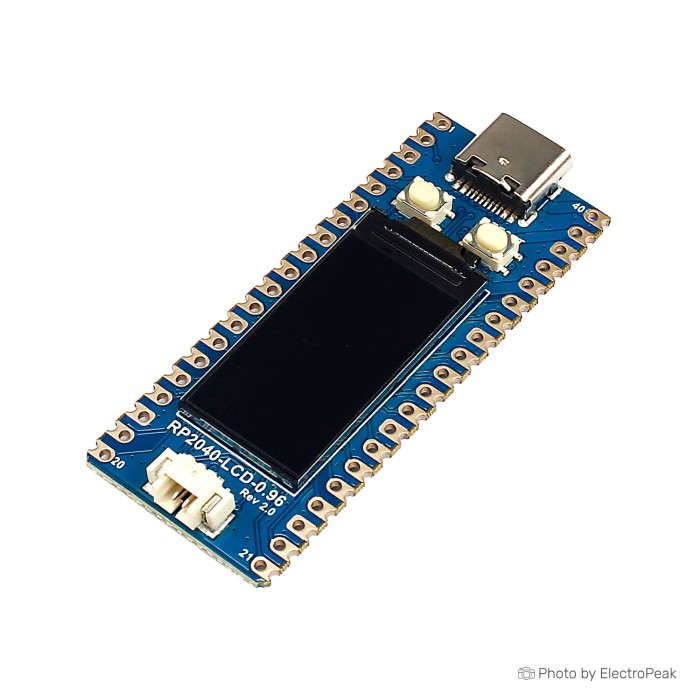

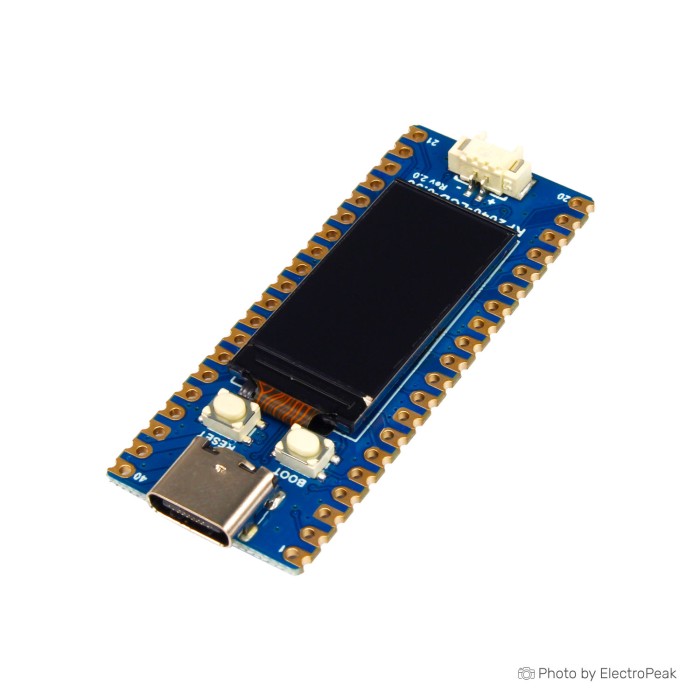

The Waveshare RP2040-LCD-0.96 MCU Board combines an RP2040 microcontroller board with an integrated 0.96 inch IPS LCD. It is built around a dual-core ARM Cortex-M0+ processor and includes onboard memory for development projects. The board also provides USB-C connectivity for data transfer and programming. A lithium battery recharge/discharge header is included for portable designs. This RP2040-LCD board is suited for electronics and robotics projects that need a compact display and flexible interfaces.
Features of Waveshare RP2040-LCD-0.96 MCU Board
- Dual-core ARM Cortex-M0+ processor
- Up to 133MHz clock speed
- Integrated 0.96 inch IPS LCD
- 160x80 pixel display resolution
- 65K color display
- USB-C connector
- Lithium battery recharge/discharge header
- MP28164 DC-DC buck-boost chip
- Low-power sleep mode
- Dormant mode support
- Drag-and-drop programming
- 26 multi-function GPIO pins
- 8 Programmable I/O state machines
Specifications of Waveshare RP2040-LCD-0.96 MCU Board
- Microcontroller: RP2040
- Processor: Dual-core ARM Cortex-M0+
- Maximum clock frequency: 133MHz
- SRAM: 264KB
- On-board Flash memory: 2MB
- Display: 0.96 inch IPS
- Display resolution: 160x80 pixels
- Display color: 65K colors
- USB port: USB-C
- Battery support: Lithium battery recharge/discharge header
- DC-DC chip: MP28164
- Maximum load current: 2A
- USB version: USB 1.1
- USB support: Device and host support
- GPIO pins: 26 multi-function GPIO pins
- SPI interfaces: 2
- I2C interfaces: 2
- UART interfaces: 2
- ADC channels: 3
- ADC resolution: 12-bit
- PWM channels: 16 controllable PWM channels
- Clock and timer: Accurate on-chip clock and timer
- Temperature sensor: On-chip temperature sensor
- Floating-point libraries: Accelerated on-chip floating-point libraries
- PIO state machines: 8 programmable I/O state machines
How to Use Waveshare RP2040-LCD-0.96 MCU Board
- Connect the board through the USB-C port.
- Program it using drag-and-drop over USB.
- Use the GPIO pins and interfaces for your project connections.
- Use the LCD to display data, menus, or graphics.
More Info
- Suitable for electronics and robotics development.
- Includes flexible digital interfaces for prototyping.
- Supports portable project designs with battery connection.
| MCU/SoC | RP2040 |
|---|---|
| Product Family | Raspberry Pi Pico |
| Architecture | Arm Cortex-M0+ |
| CPU Cores | Dual-core |
| Clock Speed (MHz) | 133 MHz |
| Flash | 2MB |
| SRAM | 264KB |
| EEPROM | No |
| GPIO Pins | 26 |
| SPI interface Pins | 2 |
| I2C interface Pins | 2 |
| UART interface Pins | 2 |
| USB Ports | USB Type-C, USB 1.1 |
| CAN Bus Support | No |
| Ethernet Support | No |
| ADC Channels | 3 |
| DAC Channels | No |
| PWM Channels | 16 |
| Timers Count | Accurate clock and timer on-chip |
| Operating Voltage (V) | 5V |
| GPIO Voltage (V) | 3.3V |
| Wireless | No |
| Form Factor | Development Board |
| IDE Support | MicroPython, C/C++ SDK |
| Antenna Type | No |
| Bluetooth Ver. | No |
