Waveshare RGB Full-Color LED Matrix Panel, 64x64px 2mm Pitch
$32.9500
In stock
SKU
L5-0003
Volume discounts:
- +10 4 % $31.6900
- +25 6 % $31.0500
- +50 8 % $30.4200
- +100 10 % $29.7900
- +300 12 % $29.1600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

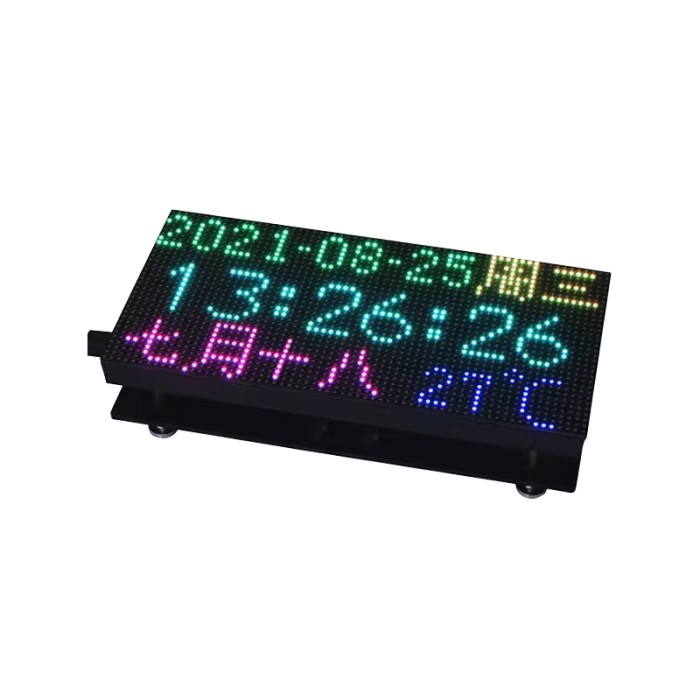

The Waveshare 64x64 3mm-pitch Dot-Matrix RGB Full Color Screen with HUB75 Interface is a high-quality display module designed for creating vibrant and dynamic visual displays. Featuring a 3mm pixel pitch, this RGB LED matrix provides sharp and colorful visuals, making it ideal for digital signage, information boards, and various creative projects. The HUB75 interface allows for easy integration and control, enabling smooth operation and versatility in display applications.
Key features of Waveshare 64x64 3mm-pitch Dot-Matrix RGB full color Screen With HUB75 interface
- 4096 individual RGB LEDs, full-color display, adjustable brightness
- 64×64 pixels, 2mm pitch, allows displaying text, colorful image, or animation
- 128×128mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
- Onboard two HUB75 header, one for controller data input, one for output, chain support
- Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)
Specifications of Waveshare 64x64 3mm-pitch Dot-Matrix RGB full color Screen With HUB75 interface
- Dimensions: 128mm × 128mm
- Pixels: 64×64=4096 DOTS
- Pitch: 2mm
- Pixel form: 1R1G1B
- Viewing angle: ≥140°
- Control type: synchronization
- Driving: 1/32 scan
- Header: HUB75
- Power supply: 5V / 3A (VH4 header input)
- Power: ≤15W
Datasheet of RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness
WIKI:
| Model | RGB-Matrix-P2-64x64 |
|---|---|
| Platform | Arduino Mega, Arduino Uno, Arduino Nano, Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5, ESP32, Raspberry Pi Pico |
| Display Size | 7.12 inch |
| Display Size Range | 7 inch to 10 inch |
| Display Resolution | 64x64 |
| Display Interface | HUB75 |
| Display Color Type | Full Color |
| Touchscreen Type | None |
| Backlight Type | None |
| Viewing Angle (°) | ≥140° |
| Operating Voltage (V) | 5V |
| Pins | 16 |
| Operating Current (mA) | ≤15W |
