Waveshare Moisture Detection Sensor Module
$2.9700
In stock
SKU
SEN-10-034
Volume discounts:
- +25 4 % $2.8500
- +100 6 % $2.7900
- +300 8 % $2.7300
- +500 10 % $2.6800
- +1000 12 % $2.6200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Rain DropSensor module Previous

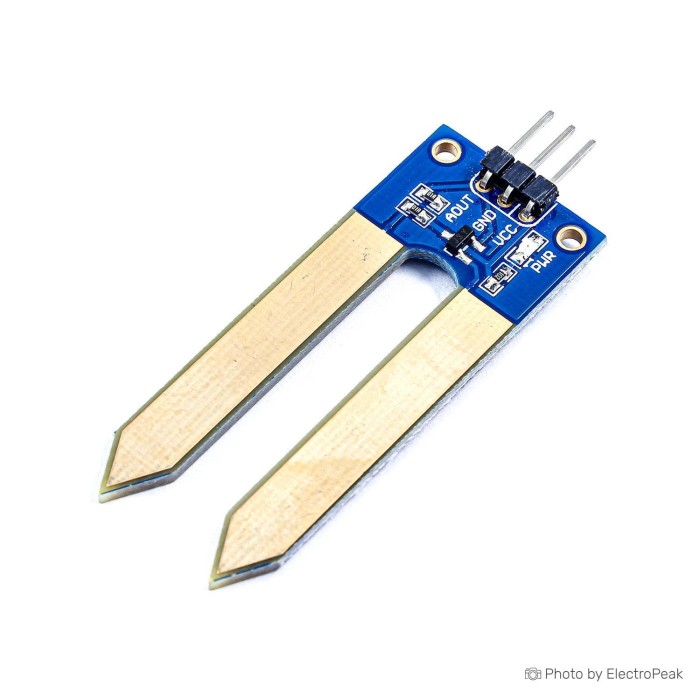

The Waveshare Moisture Detection Sensor Module is a soil moisture sensor module with a fork-like design for easy insertion into soil. It provides an analog output that changes with soil moisture level. The output voltage increases as soil moisture increases. This module is suitable for moisture monitoring and related sensing applications.
Features of Waveshare Moisture Detection Sensor Module
- Fork-like insertion design
- Analog output
- Output voltage increases with moisture
- Easy soil insertion
Specifications of Waveshare Moisture Detection Sensor Module
- Moisture detection depth: 38mm
- Supply voltage: 2.0V to 5.0V
- Dimensions: 51X20mm
- Mounting hole size: 2.0mm
- Output: Analog (AOUT)
- Output voltage: Proportional to soil moisture
How to Use Waveshare Moisture Detection Sensor Module
- Connect VCC to a 2.0V to 5.0V power supply.
- Connect GND to power supply ground.
- Connect AOUT to the MCU analog input port.
- Read the analog output from AOUT to measure soil moisture.
More Info
- Suitable for automatic watering systems
- Suitable for flowerpot soil moisture detection
- Suitable for auto pouring systems
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 2.0V - 5.0V |
| Dimensions (mm) | 51 x 20 mm |
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Measurement Range | 38 mm |
| Environmental Parameter | Humidity |
| Probe Type | Probe Style |
| Relay Output | No |
