Waveshare ESP32-S3 5inch Touch Display Development Board

SAVE
As low as $48.2500
In stock
Only %1 left
SKU
DEV-02-022
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
Waveshare ESP32-S3 4inch Touch Display Development Board Previous Waveshare ESP32-S3 4inch Touch Display Development Board

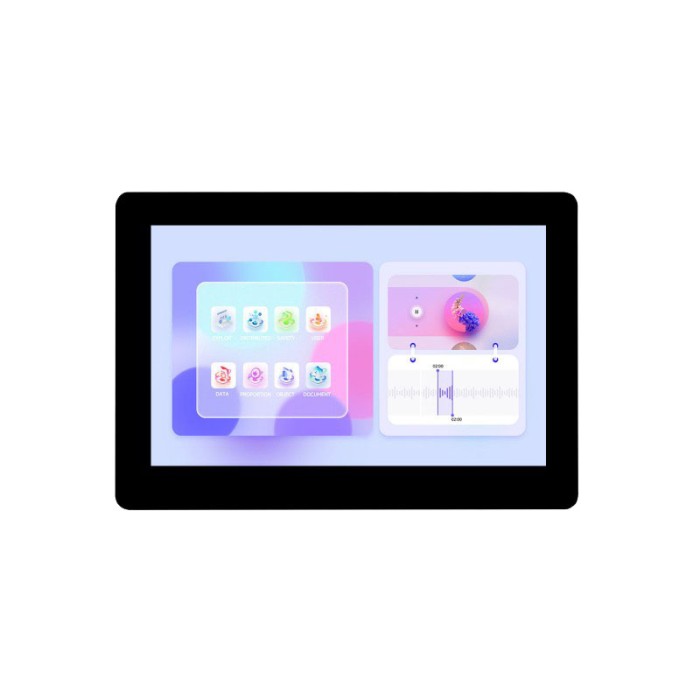

The Waveshare ESP32-S3 5-inch Touch Display Development Board is a versatile and powerful tool for IoT, mobile devices, and smart home applications. Powered by the ESP32-S3 microcontroller with a 240MHz dual-core Xtensa LX7 processor, this board supports both WiFi (2.4GHz) and Bluetooth 5 (BLE), making it ideal for wireless communication projects. The onboard 5-inch capacitive touch display with resolution options of 800x480 or 1024x600 provides a smooth interface for GUI applications like LVGL. It also includes various communication interfaces, such as CAN, I2C, and RS485, making it suitable for Human-Machine Interface (HMI) projects.

Specifications of ESP32-S3 5-inch Touch Display Development Board

  • Microcontroller: Xtensa 32-bit LX7 dual-core processor, up to 240MHz

  • Wireless Communication:

    • 2.4GHz WiFi (802.11 b/g/n)

    • Bluetooth 5 (Low Energy)

  • Memory:

    • 512KB SRAM, 384KB ROM

    • 16MB PSRAM, 8MB Flash

  • Display:

    • 5-inch capacitive touch screen

    • Resolution options: 800x480 or 1024x600

    • 65K color, 5-point touch with I2C interface

  • Interfaces:

    • CAN Port: Transceiver control, data analysis, acquisition

    • I2C Interface: GPIO8 (SDA) and GPIO9 (SCL)

    • RS485 Interface: Supports automatic switching of transceiver mode

    • Micro SD Slot: For external storage

    • USB: Full-speed USB port

  • Power:

    • Onboard MX1.25 battery header (CS8501 charging management chip)

    • Input Voltage: 5V (with a 580mA charging current)

  • Dimensions: ---

  • Weight: ---

Datasheet of ESP32-S3 5-inch Touch Display Development Board

Development Resources

Development WiKi
