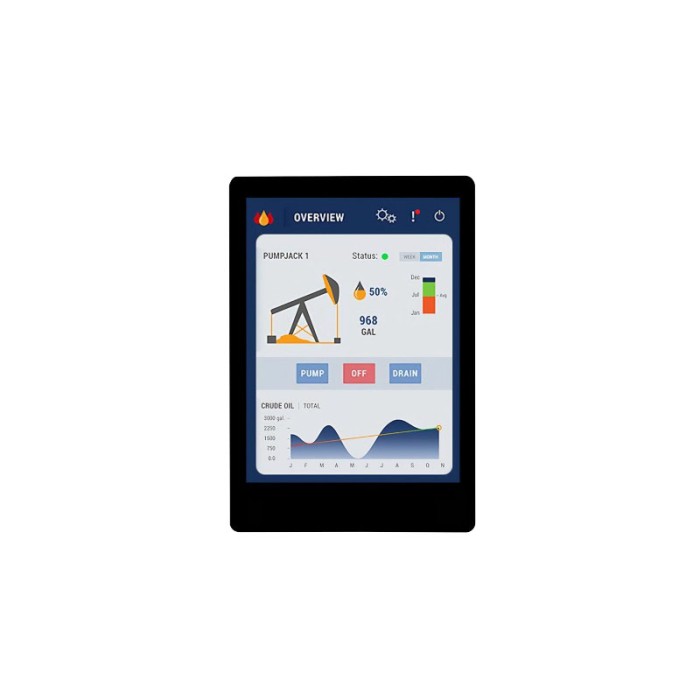

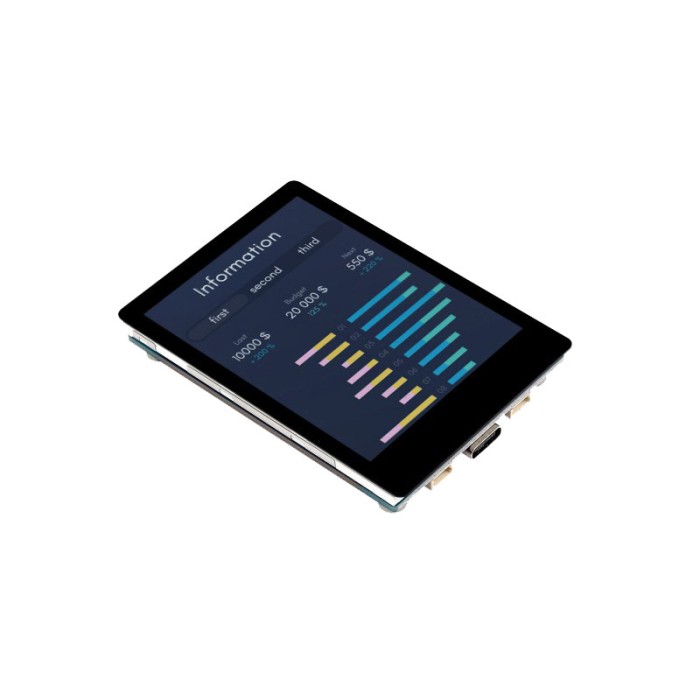

Waveshare ESP32-S3 2.8inch Touch Display Development Board

[DEV-02-029]
Shop with confidence Learn More
Availability: 118 items
SKU
DEV-02-029
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$33.75

The Waveshare ESP32-S3 2.8inch Touch Display Development Board is a compact microcontroller development platform that integrates a 2.8-inch TFT capacitive touch display. Powered by the ESP32-S3 chip, it supports 2.4GHz WiFi and Bluetooth 5 (LE). The board is equipped with advanced features such as a position sensor, RTC clock, PCM audio decoder, micro SD slot, and a battery charging management module, making it ideal for IoT, mobile devices, and smart home applications. The display offers smooth graphics and touch interactions, while the onboard USB Type-C port ensures easy connectivity.

Specifications of Waveshare ESP32-S3 2.8inch Touch Display Development Board

  • Controller: ESP32-S3, dual-core processor

  • Display Type: 2.8-inch TFT with ST7789 controller

  • Touch Control: Capacitive touch with CST328 controller

  • Wireless: 2.4GHz WiFi, Bluetooth 5 (LE)

  • Onboard Devices:

    • Position Sensor: QMI8658

    • RTC Clock: PCF85063

    • PCM Audio Decoder: PCM5101

    • Micro SD slot

    • Battery Charging Management Module

  • Interface: USB Type-C

  • Dimensions: 73.06 (H) x 50.54 (V) mm

  • Power Supply: 5V via USB Type-C or battery

Development Resources of Waveshare ESP32-S3 2.8inch Touch Display Development Board
