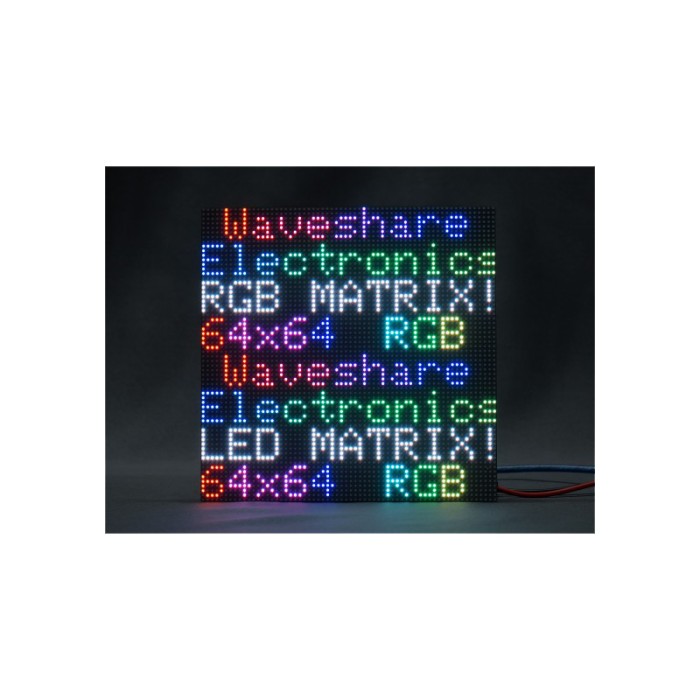

The Waveshare 64x64 3mm-pitch Dot-Matrix RGB Full Color Screen with HUB75 Interface is a high-quality display module designed for creating vibrant and dynamic visual displays. Featuring a 3mm pixel pitch, this RGB LED matrix provides sharp and colorful visuals, making it ideal for digital signage, information boards, and various creative projects. The HUB75 interface allows for easy integration and control, enabling smooth operation and versatility in display applications.
Key features of Waveshare 64x64 3mm-pitch Dot-Matrix RGB full color Screen With HUB75 interface
- 4096 individual RGB LEDs, full-color display, adjustable brightness
- 64×64 pixels, 3mm pitch, allows displaying text, colorful image, or animation
- 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
- Onboard two HUB75 header, one for controller data input, one for output, chain support
- Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on
Specifications of Waveshare 64x64 3mm-pitch Dot-Matrix RGB full color Screen With HUB75 interface
- Dimensions: 192x192mm
- Pixels: 64×64=4096 DOTS
- Pitch: 3mm
- Pixel form: 1R1G1B
- Viewing angle: ≥160°
- Control type: synchronization
- Driving: 1/32 scan
- Header: HUB75
- Power supply: 5V / 4A (VH4 header input)
- Power: ≤20W
Development Resources of RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness
