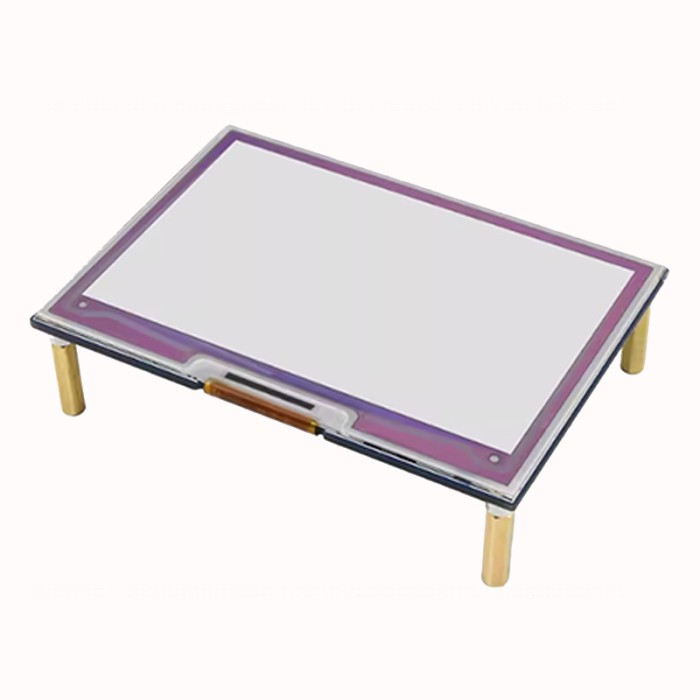

Wavesahare 4.01 inch 7-color e-Paper Display HAT for Raspberry Pi 4
$72.9500
In stock
SKU
LCD-01-309
Volume discounts:
- +5 4 % $70.1300
- +10 6 % $68.7200
- +25 8 % $67.3200
- +50 10 % $65.9100
- +100 12 % $64.5000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
7 inch 1024X600 HDMI LCD Type H Previous
The Waveshare 4.01 Inch 7-Color E-Paper Display HAT For Raspberry Pi is a high-resolution display module for clear and colorful output. It uses 7-color Advanced Color ePaper (ACeP) technology and supports a 640×400 pixel resolution. The display offers ultra-low power consumption and is suited for projects that need detailed visuals. It provides a 4.01-inch display size and a viewing angle greater than 170°. The module is designed with 3-wire SPI and 4-wire SPI interfaces. Refresh time is 30s, and refresh power is 50mW (typ.).
Features of Waveshare 4.01 Inch 7-Color E-Paper Display HAT For Raspberry Pi
- 7-color ACeP display
- 640×400 pixel resolution
- Ultra-low power consumption
- 3-wire SPI interface
- 4-wire SPI interface
- Viewing angle greater than 170°
- 4.01-inch display size
Specifications of Waveshare 4.01 Inch 7-Color E-Paper Display HAT For Raspberry Pi
- Resolution: 640×400 pixels
- Color: 7-color Advanced Color ePaper (ACeP)
- Interface: 3-wire SPI
- Interface: 4-wire SPI
- Refresh Time: 30s
- Viewing Angle: >170°
- Power Consumption: Ultra-low power consumption
- Refresh Power: 50mW (typ.)
- Display Size: 4.01 inches 86.40 × 54.00mm
- Outline Dimensions: 98.50 × 70.00mm
How to Use Waveshare 4.01 Inch 7-Color E-Paper Display HAT For Raspberry Pi
- Connect the display HAT to the target system using the SPI interface.
- Install the required display setup for the project.
- Send image or text data to the display for rendering.
More Info
- Designed as a display HAT for Raspberry Pi.
- Suitable for clear, detailed, and colorful display output.
| Model | 4.01inch e-Paper HAT (F) |
|---|---|
| Platform | Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5 |
| Display Size | 4.01 |
| Display Size Range | 3.5 inch to 6.9 inch |
| Display Resolution | 640×400 |
| Display Interface | SPI |
| Panle Type | ACeP |
| Display Color Type | 7-Color |
| Touchscreen Type | None |
| Backlight Type | None |
| Viewing Angle (°) | >170° |
| Operating Temp (°C) | 0 to 40 |
| Operating Voltage (V) | 3.3V, 5V |
| Pins | 40 |
| Dimensions (mm) | 86.40 × 54.00mm |
