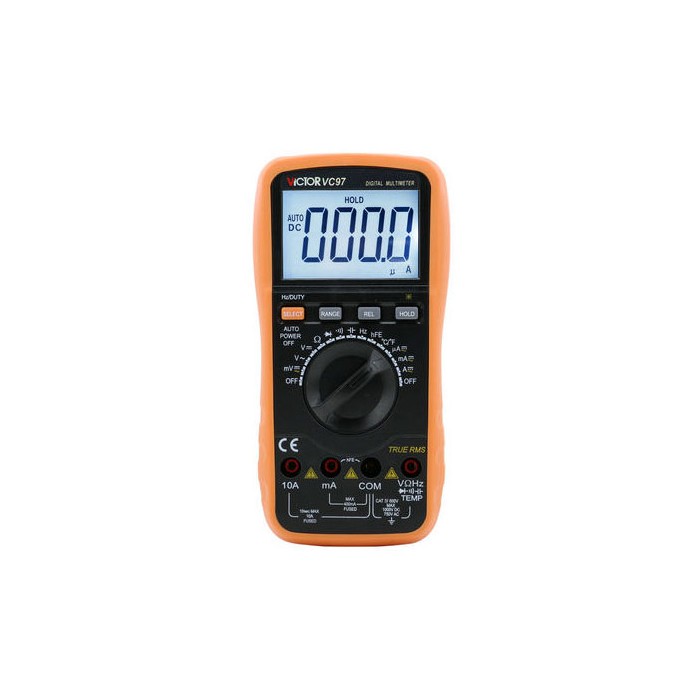

VICTOR VC97 Digital Multimeter

VICTOR VC97 Digital Multimeter is a measurement tool for voltage, current, resistance, capacitance, frequency, and temperature. It supports true RMS readings, auto and manual range selection, and electronic component testing. The digital multimeter includes an additional 20A probe for higher current measurements. Its LCD display with back light helps with use in low-light environments. Data hold, buzzer test, auto power off, and low battery indication add to its practical operation.

Features of VICTOR VC97 Digital Multimeter - 20A Probe

• True RMS measurement
• Auto and manual range selection
• Additional 20A probe included
• LCD display with 4-digit readout
• Back light LED
• HOLD function
• Buzzer continuity test
• Diode and transistor testing
• Auto power off
• Low battery indication
• Shock-resistant design
• Analog and digital duty cycle measurement

Specifications of VICTOR VC97 Digital Multimeter - 20A Probe

• DC Voltage: 400mV/4V/40V/400V/1000V ±(0.5%+4)
• AC Voltage: 400mV/4V/40V/400V/750V ±(0.8%+10)
• DC Current: 400uA/4000uA/40mA/400mA/10A ±(1%+10)
• AC Current: 400uA/4000uA/40mA/400mA/10A ±(1.5%+10)
• Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+4)
• Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF ±(2.5%+20)
• Frequency: 100/1000/10k/100k/1M/30MHz ±(0.5%+10)
• Temperature: -20~1000°C ±(1.0%+5)
• Weight: 320 g
• Dimensions: 27.5 * 88.5 * 190 mm
• Battery: Replaceable 9V battery

How to Use VICTOR VC97 Digital Multimeter - 20A Probe

1. Select the required measurement function and range.
2. Connect the probes and take the reading on the LCD display.
3. Use HOLD, back light, or buzzer test functions as needed.

More Info

• Includes an additional 20A probe.
• Supports diode, transistor, and continuity testing.
• Designed with unit display and low battery indication.
