VEML7700 Ambient Light Sensor Module
$1.5000
In stock
SKU
SEN-11-065
Volume discounts:
- +50 3 % $1.4500
- +100 5 % $1.4300
- +300 7 % $1.4000
- +500 8 % $1.3800
- +1000 10 % $1.3500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GY-33 TCS34725 Color Recognition Sensor Module Previous

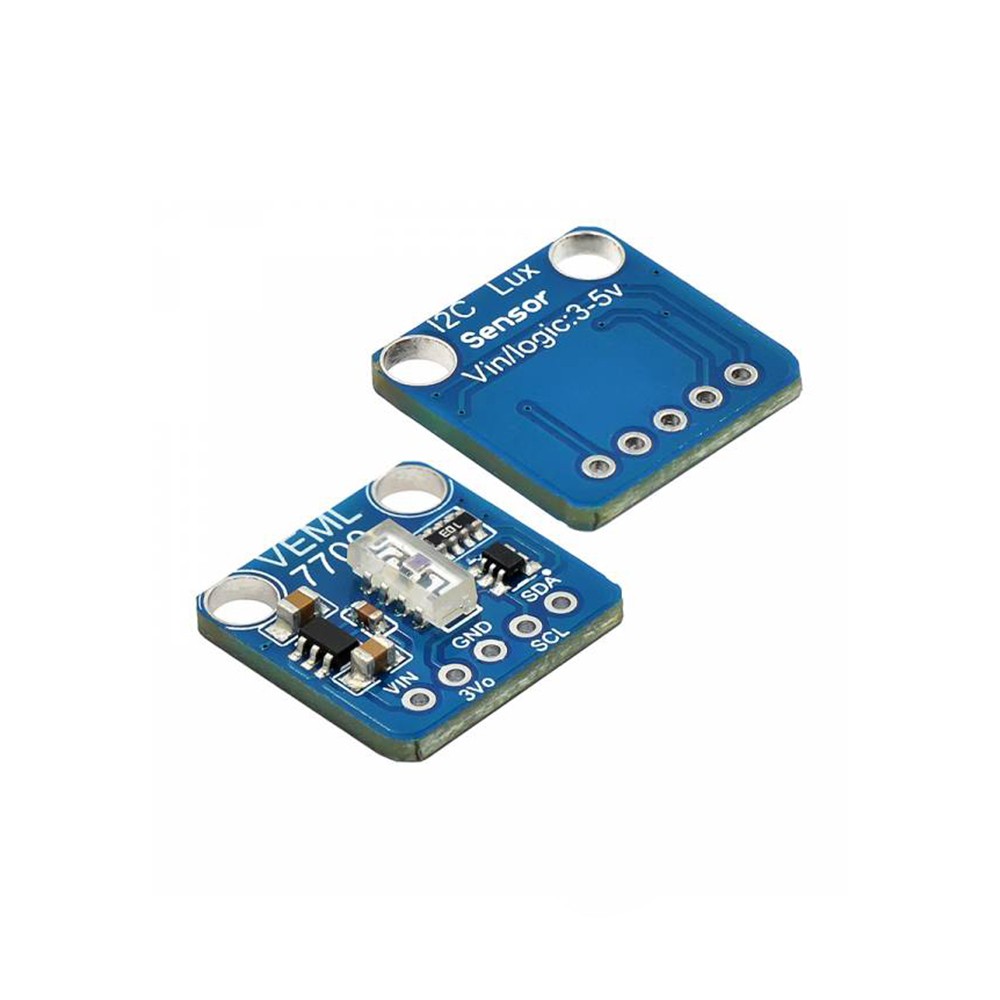

VEML7700 Ambient Light Sensor Module is a light measuring board for ambient light detection. It supports I2C communication and works with 3.3V or 5V DC power supply. The module is designed for light measurement projects that require a stable sensor board. It can be used with Raspberry Pi type microcontrollers through the I2C bus. The sensing range reaches 0 to 120,000 lx with 16-bit measurement. The regulator output is 3.3V DC with a maximum of 100mA.
Features of VEML7700 Ambient Light Sensor Module
- Ambient light measurement
- I2C communication
- 3.3V or 5V DC supply
- 0 to 120,000 lx range
- 16-bit measurement
- Stable sensor board
- Raspberry Pi support
Specifications of VEML7700 Ambient Light Sensor Module
- Item Type: Ambient Light Sensor Module
- Power Supply: 3.3 or 5V DC
- Interface: I2C
- I2C Address: 0x10 (cannot be modified)
- Measuring Range: 0 to 120,000lx (16 bits)
- Accuracy: 0.0036lx / ct
- Regulator Output: 3.3V DC / 100mA maximum
How to Use VEML7700 Ambient Light Sensor Module
- Connect the module to the I2C pins of your controller.
- Install the required library for your microcontroller.
- Read ambient light data from the sensor.
More Info
- Designed for ambient light measurement projects.
- Uses a fixed I2C address of 0x10.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 3.3V, 5V |
| Output Type | I2C |
| Accuracy | 0.0036lx / ct |
| Resolution | 16-bit |
| Wavelength Range | 400-700nm |
| Chipset | VEML7700 |
| Sensor Type | Digital Light Intensity Sensor |
| Output Interface | Digital |
| Application | surveillance systems, Automatic lighting, Energy consumption optimization, Internet of Things (IoT), Room and environment light control |
