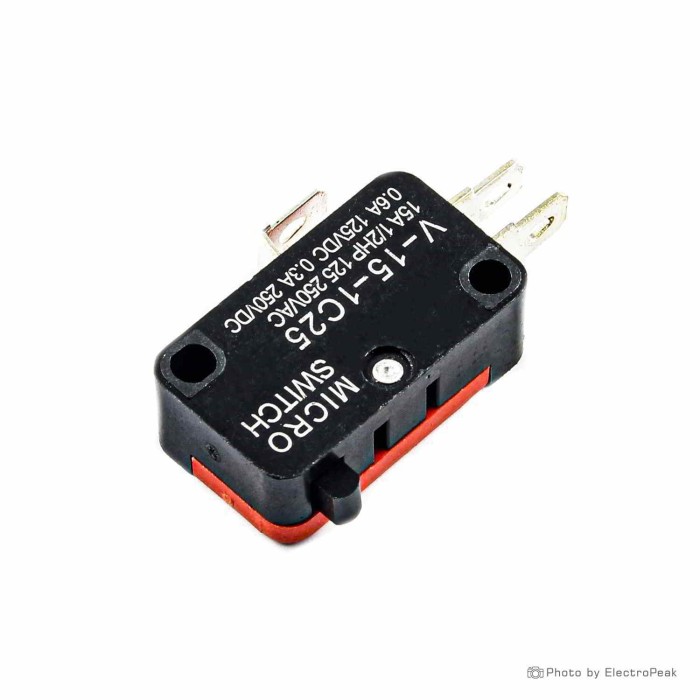

V-15-1C25 Microswitch Stroke Limit Switch
$0.1800
In stock
SKU
ELC-14-091
Volume discounts:
- +100 6 % $0.1700
- +1000 11 % $0.1600
V-15-1C25 Microswitch Stroke Limit Switch is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
V-151-1C25 Microswitch Stroke Limit Switch Previous
The V-15-1C25 Microswitch is a compact electronic switch for mechanical state detection and control applications. It features momentary actuator action and a short hinge roller lever actuator. This microswitch uses a 1NO, 1NC (SPDT) contact configuration. It is suitable for electronic devices, home appliances, industrial equipment, and other similar uses. The package content includes 5 x Micro Switch.
Features of V-15-1C25 Microswitch
- Momentary actuator action
- Short hinge roller lever actuator
- SPDT contact configuration
- Plastic and metal construction
- Red and black body color
- 5-piece package
Specifications of V-15-1C25 Microswitch
- Actuator Action: Momentary
- Actuator Type: Short Hinge Roller Lever
- Rating: 15A, 1/2HP, 125/250VAC
- Rating: 0.6A, 125VDC
- Rating: 0.3A, 250VDC
- Contact Configuration: 1NO, 1NC (SPDT)
- Switch Body Size: ~2.8 x 1 x 1.6cm / 1.1" x 0.39" x 0.63" (L*W*H)
- Fixing Holes Dia: ~0.32cm / 0.13"
- Button Height: ~0.3cm / 0.12"
- Actuator Size: ~1.4 x 0.45cm / 0.55" x 0.18" (L*W)
- Terminal Blade Width: ~0.47cm / 0.19"
- Material: Plastic & Metal
- Main Color: Red & Black
- Package Content: 5 x Micro Switch
How to Use V-15-1C25 Microswitch
- Mount the microswitch using the fixing holes.
- Connect the terminal blades as required by the circuit.
- Apply mechanical actuation to trigger the switch.
- Verify operation within the listed ratings and dimensions.
More Info
- Designed for mechanical change detection.
- Compact form factor for electronic and industrial use.
