1-Channel USB Relay Module - 5V
$4.0500
In stock
SKU
REL-01-016
Volume discounts:
- +25 4 % $3.8800
- +100 6 % $3.8000
- +300 8 % $3.7200
- +500 10 % $3.6300
- +1000 12 % $3.5500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ESP-01S ESP8266 WiFi Module with 5V Relay Previous

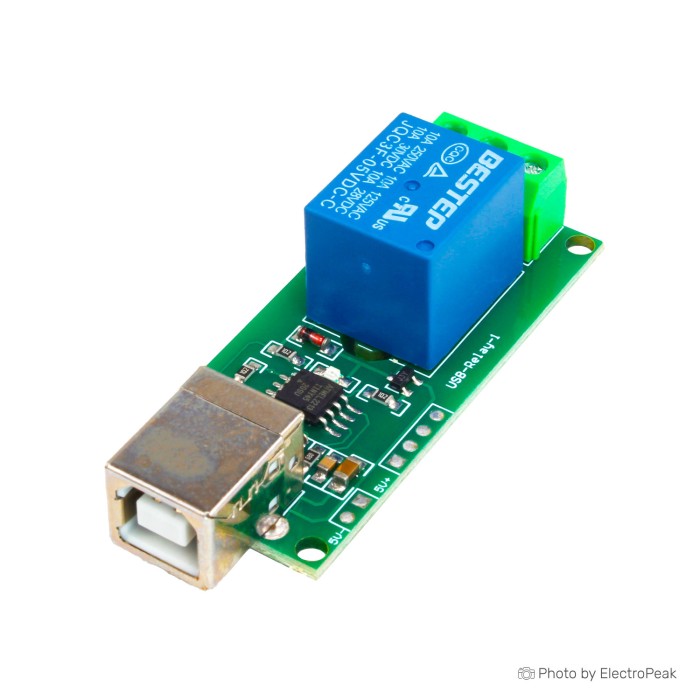

The 1-Channel USB Relay Module is a USB controlled relay board with a single channel for switching electrical loads. It uses HID technology and does not require a driver on Windows. An application and a C++ development library are available for integration into projects. The module supports 32-bit systems and 32-bit Windows systems. It is built around a Songle 5V relay and includes a printer connector on the board.
Features of 1-Channel USB Relay Module - 5V, 300mA
- USB controlled relay board
- Single-channel switching
- Driver-free HID operation
- Songle 5V relay
- Printer connector on board
- 32-bit system support
Specifications of 1-Channel USB Relay Module - 5V, 300mA
- Relay type: Songle 5V relay
- Input voltage: 5V DC
- Input current: 300mA
- Wiring method: NC/COM/NO
- Maximum control AC load: 250V, 10A AC
- Maximum control DC load: 30V, 10A DC
How to Use 1-Channel USB Relay Module - 5V, 300mA
- Connect the module to a USB system.
- Use the provided application or C++ development library.
- Wire the load through NC, COM, and NO terminals.
More Info
- No driver installation is required for Windows HID use.
- Support is provided for 32-bit Windows systems.
| Platform | Linux, Mac, Windows |
|---|---|
| Interface Type | USB |
| Operating Voltage (V) | 5V |
| Operating Current (mA) | 300 mA |
| Control Type | Relay (Electromechanical) |
| Channel Count | 1 |
| Switching Capacity | 250V/10A AC, 30V/10A DC |
| Load Current (A) | 10A |
| Relay Type | Relay output |
| Material | PCB |
| Input Type (AC/DC) | DC |
