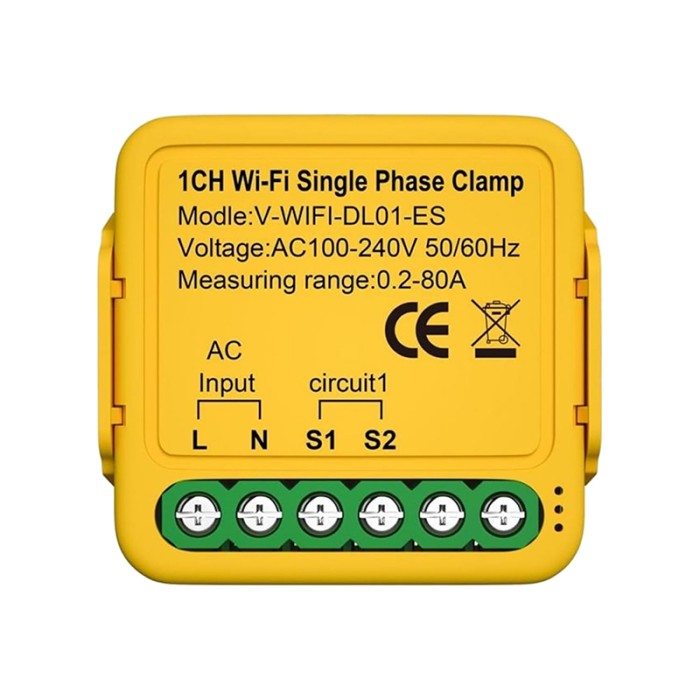

TUYA Smart Power Usage Measurement Module

The TUYA Smart Power Usage Measurement Module is designed for real-time monitoring and reporting of electrical power usage in both single and dual-channel options. This module allows users to track their power consumption through a dedicated app, displaying various metrics such as hourly, daily, and monthly electricity usage (in KWh), current in milliamps (mA), power in watts (W), and voltage in volts (V). It also provides a total electricity usage reading. The module operates on a wide voltage range and supports WiFi connectivity, making it ideal for home automation and energy management.

Specifications of TUYA Smart Power Usage Measurement Module

• Options: Single channel, Dual channel

• Rated Voltage: 100-240V AC, 50/60Hz

• Measurable Current Range: 0.2A - 100A

• WiFi Frequency: 2.4GHz

• Ambient Temperature Range: -10°C ~ 55°C

• Data Display on App:

  • Hourly Electricity (KWh)

  • Today's Electricity (KWh)

  • Monthly Electricity (KWh)

  • Current (mA)

  • Power (W)

  • Voltage (V)

  • Total Electricity (KWh)
