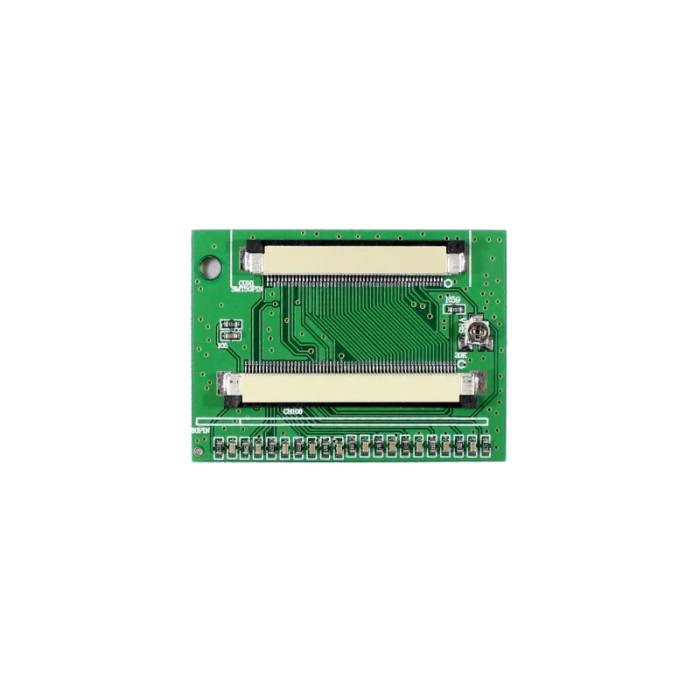

TTL50P to TTL60P Converter For LCD Driver Boards
$2.5000
In stock
SKU
LCD-02-011
Volume discounts:
- +50 4 % $2.4000
- +100 6 % $2.3500
- +300 8 % $2.3000
- +500 10 % $2.2500
- +1000 12 % $2.2000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare ESP8266 Wireless E-Paper Display Driver Module Previous
The TTL50P to TTL60P Converter for LCD Driver Boards provides a simple way to connect 50-pin TTL and 60-pin TTL interfaces. It is designed for LCD driver boards and related electronic projects. The converter supports interface conversion between TTL50P and TTL60P connections. It uses standard TTL connectors and a high-quality PCB with gold-plated contacts. This product is suitable for display upgrades and integration tasks where these interface types are required.
Features of TTL50P to TTL60P Converter For LCD Driver Boards
- 50-pin to 60-pin TTL conversion
- Easy plug-and-play installation
- Durable construction
- Reliable signal transmission
Specifications of TTL50P to TTL60P Converter For LCD Driver Boards
- Compatibility: Converts 50-pin TTL interface to 60-pin TTL interface
- Input Interface: TTL50P
- Output Interface: TTL60P
- Operating Voltage: 3.3V to 5V DC
- Operating Temperature: -20°C to +70°C
- Connector Type: Standard TTL connectors
- Material: High-quality PCB with gold-plated contacts
- Applications: LCD driver boards, electronic projects, display upgrades
How to Use TTL50P to TTL60P Converter For LCD Driver Boards
- Connect the TTL50P side to the compatible input interface.
- Connect the TTL60P side to the compatible output interface.
- Install the converter in the LCD driver board setup.
More Info
- Designed for LCD interface conversion tasks.
- Uses standard TTL connector format.
| Interface Type | Digital, Parallel |
|---|---|
| Operating Voltage (V) | 3.3V to 5V DC |
| Operating Temp (°C) | -20°C to +70°C |
| Output Type | Digital |
| Voltage Range | 3.3V to 5V DC |
| Protocols | Parallel |
| Conversion Type | TTL50P to TTL60P |
| Material | High-quality PCB with gold-plated contacts |
| Connector | Standard TTL connectors |
