TTL50P to TTL40P Converter For LCD Driver Boards
$2.5000
In stock
SKU
LCD-02-010
Volume discounts:
- +50 4 % $2.4000
- +100 6 % $2.3500
- +300 8 % $2.3000
- +500 10 % $2.2500
- +1000 12 % $2.2000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

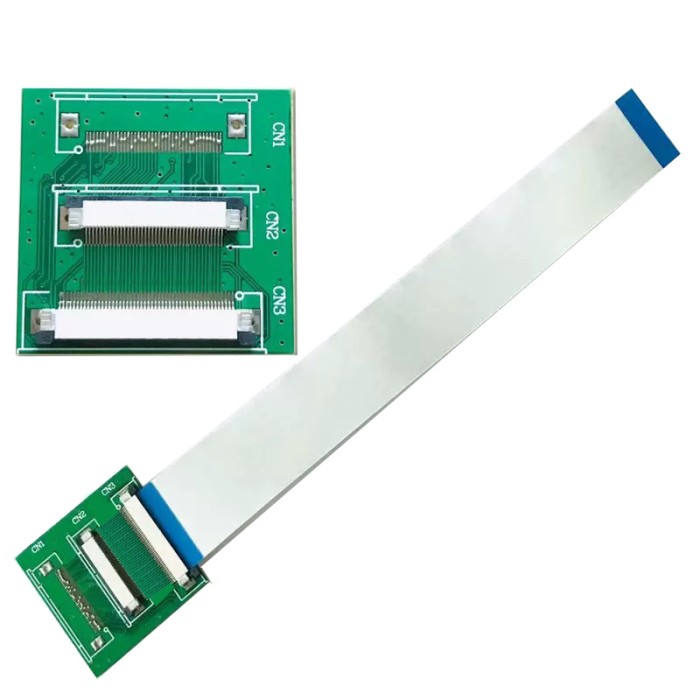

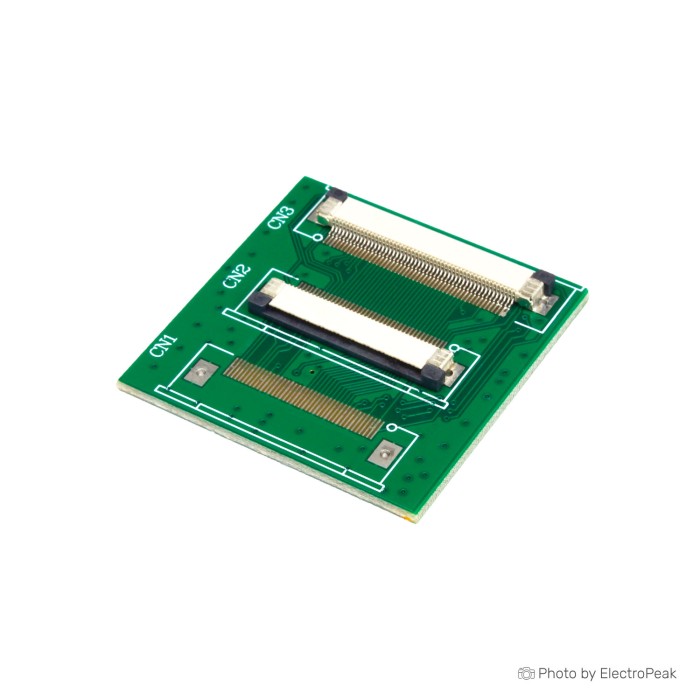

The TTL50P to TTL40P Converter For LCD Driver Boards is an adapter for connecting 50-pin and 40-pin TTL interfaces in LCD projects. It is designed to help integrate LCD panels and driver boards with different connector formats. The TTL50P to TTL40P Converter For LCD Driver Boards supports standard TTL connectors and is built on a PCB with gold-plated contacts. It is suitable for LCD driver boards, electronic projects, and display upgrades.
Features of TTL50P to TTL40P Converter For LCD Driver Boards
- 50-pin to 40-pin conversion
- Easy plug-and-play installation
- Durable PCB construction
- Reliable signal transmission
Specifications of TTL50P to TTL40P Converter For LCD Driver Boards
- Compatibility: Converts 50-pin TTL interface to 40-pin TTL interface
- Input Interface: TTL50P
- Output Interface: TTL40P
- Operating Voltage: 3.3V to 5V DC
- Operating Temperature: -20°C to +70°C
- Connector Type: Standard TTL connectors
- Material: High-quality PCB with gold-plated contacts
- Applications: LCD driver boards, electronic projects, display upgrades
How to Use TTL50P to TTL40P Converter For LCD Driver Boards
- Connect the TTL50P side to the matching 50-pin interface.
- Connect the TTL40P side to the matching 40-pin interface.
More Info
- Designed for LCD panel and driver board interface conversion.
- Uses standard TTL connector formats.
| Interface Type | Parallel, RGB |
|---|---|
| Operating Voltage (V) | 3.3V to 5V DC |
| Operating Temp (°C) | -20°C to +70°C |
| Interface Category | TFT LCD Converter Board |
| Output Type | Digital |
| Voltage Range | 3.3V to 5V DC |
| Protocols | Parallel |
| Conversion Type | TTL 50-Pin to 40-Pin |
| Material | High-quality PCB with gold-plated contacts |
| Connector | Standard TTL connectors |
