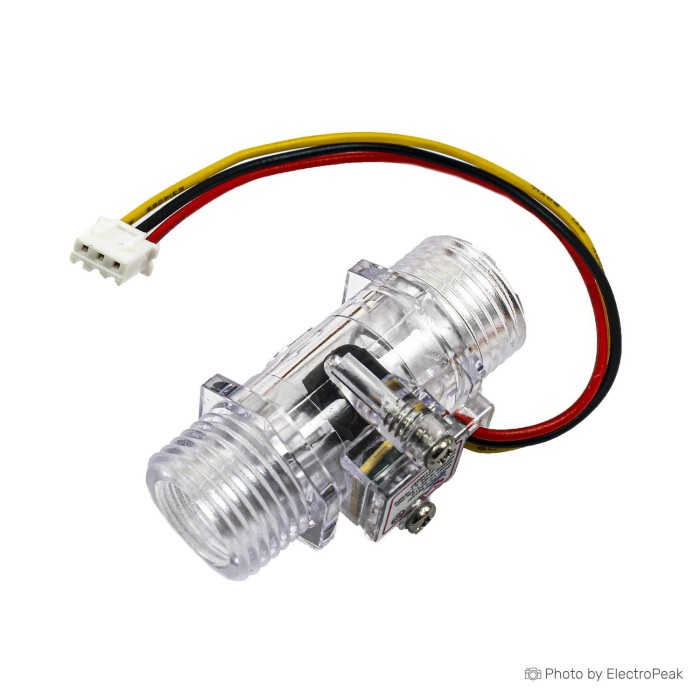

YF-S201C Transparent Water Flow Sensor
$3.7500
In stock
SKU
SEN-20-006
Volume discounts:
- +25 5 % $3.5800
- +100 7 % $3.4900
- +300 9 % $3.4000
- +500 11 % $3.3200
- +1000 14 % $3.2300
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
YwRobot Water Level Sensor Module
Previous
Description:
Water flow sensor is mainly consists of plastic valve body, rotor assembly and Hall Current Sensor.It is installed in the hot water inlet end for detecting water flow. When water through the flow rotor assembly, Magnetic rotor will rotate and Speed will change as the flow change. Hall Current sensor output corresponding pulse Signal and feedback to controller, then the controller will control the flow.
Â
Specification:
The lowest rated working voltage: DC4.5 5V-24V.
Maximum operating current: 15 mA (DC 5V).
Working voltage range: DC 5~18 v.
Load capacity: ‰¤ 10 mA (DC 5V).
Work temperature: ‰¤ 80 „
Work humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 1.75Mpa
Storage temperature: -25~+80 ° c
Save humidity: 25%～95%RH
Flow Range :1-30L / min
External threads: Approx. 1/2"
