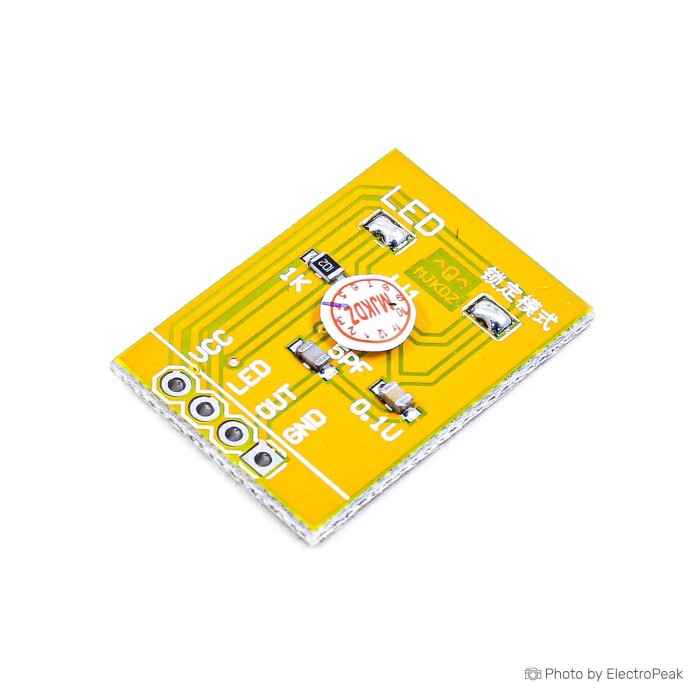

MJKDZ Touch Switch Module

The MJKDZ Touch Switch Module is a single-key touchpad module designed for touch-based switching in electronics and robotics projects. It provides a touch switch function similar to a single button for circuit control. The module can detect touch through glass and other surfaces. It uses the TTP223 main chip and operates with low power consumption. A mono-color LED indicator is included to show touching.

The module is suitable for DC and AC devices and Arduino projects. It is built as a single touchpad switch for replacing a tactile button switch or direct key. The touchpad and line are tuned for stable touch detection. The module is sensitive to human skin and body touch.

Features of MJKDZ Touch Switch Module - 2.0V~5.5V

• Single-key touchpad switch
• Touch detection through glass
• TTP223 main chip
• Low power consumption
• Mono-color LED indicator

Specifications of MJKDZ Touch Switch Module - 2.0V~5.5V

• Operating voltage: 2.0V~5.5V
• Current: 1.5uA
• Maximum current: 3.0uA
• Response time: Max 220 ms
• Low power mode at 3V supply
• Size: 18mm x 25.5mm

How to Use MJKDZ Touch Switch Module - 2.0V~5.5V

1. Connect the module to a compatible power supply within the operating voltage range.
2. Use the touchpad as a touch-based switch input.
3. Check the LED indicator for touch status.

More Info

• Designed as a replacement for a single tactile button switch.
• Sensitivity depends on the module PCB design specification.
• Can be applied in Arduino projects and other electronic control circuits.
