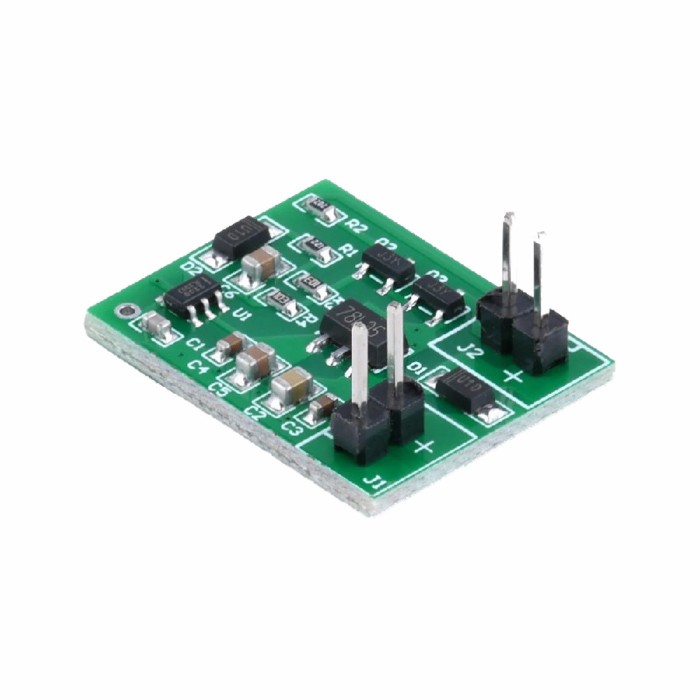

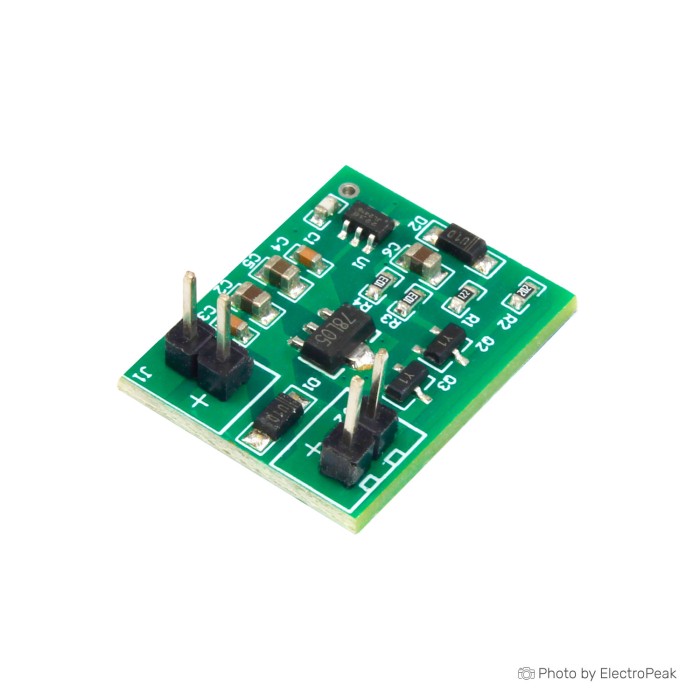

The Rectangular Touch Sensor LED Driver Module - 12V is an advanced touch-sensitive module designed for easy integration with LED lighting systems. With the ability to penetrate various materials like wood, glass, acrylic, ceramics, and plastics, it allows for seamless operation by simply sweeping or touching the surface. The module supports a wide input voltage range from 5V to 24V and can drive lights up to 3A current. Its built-in induction loop ensures smooth fading and extinction of light, providing an elegant lighting control solution.
Specifications of Touch Sensor LED Driver Module - 12V
- Input Voltage: DC 5-24V (consistent with lamp voltage)
- Maximum Operating Current: 3A
- Sensing Distance: 0-20mm
- Sensing Thickness: 1-1.5cm
- Operation: Touch or sweep to light, gradual fading out when leaving
- Compatibility: Can penetrate materials like wood, glass, acrylic, ceramics, and plastics
- Induction Loop: Built-in (reserved induction loop interface)
- Dimensions: 22x17mm
