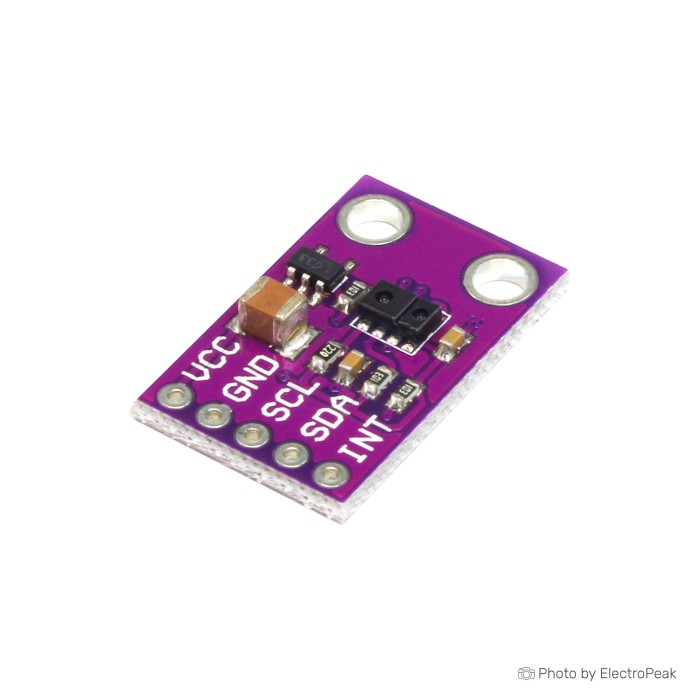

CJMCU-88 TMD27713 IRLED + ALS + Proximity Sensor
$1.9600
In stock
SKU
SEN-11-053
Volume discounts:
- +50 4 % $1.8800
- +100 6 % $1.8500
- +300 8 % $1.8100
- +500 10 % $1.7700
- +1000 12 % $1.7300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Raspberry Pi Camera Module Type D Previous
CJMCU-88 TMD27713 IRLED ALS Proximity Sensor combines digital ambient light sensing, infrared LED support, and proximity detection in a single 8-pin package. It is designed for accurate operation across a wide range of lighting conditions, from sunlight to dark rooms. The proximity detector includes a digital proximity sensor, LED driver, and IR LED. This sensor is calibrated for close-range detection and supports high dynamic range performance. It is suitable for electronics applications that need ambient light sensing and proximity sensing in one device.
Features of CJMCU-88 TMD27713 IRLED ALS Proximity Sensor
- Digital ambient light sensing
- Proximity detection system
- Infrared LED support
- 16-bit resolution
- Very high sensitivity
- 1,000,000:1 dynamic range
- 100-mm detection calibration
- Programmable IR pulses
- Programmable current sink for the IR
- Background light rejection
Specifications of CJMCU-88 TMD27713 IRLED ALS Proximity Sensor
- Resolution: 16 Bits
- Sensitivity: Very High
- Dynamic Range: 1,000,000:1
- Calibrated Detection Distance: 100 mm
- Programmable Number of IR Pulses: Yes
- Programmable Current Sink for the IR: Yes
- Background Light Rejection: Yes
- Package: 8-Pin Digital Logic Interface
How to Use CJMCU-88 TMD27713 IRLED ALS Proximity Sensor
- Install the sensor in the target electronics or module assembly.
- Connect the 8-pin digital logic interface.
- Use the ALS and proximity outputs in the application design.
More Info
- Includes a digital proximity sensor, LED driver, and IR LED.
- Designed for use in conditions ranging from sunlight to dark rooms.
| Interface Type | Digital, I2C |
|---|---|
| Output Type | I2C |
| Accuracy | 16-bit |
| Detection Distance | 100 mm |
| Sensing Method | Infrared (IR) |
| Chipset | TMD27713 |
| Sensor Model | TMD27713 |
