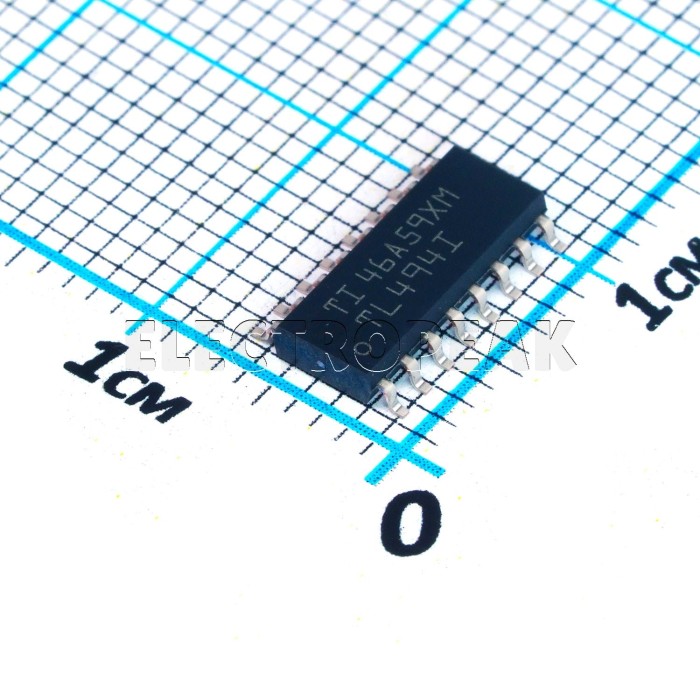

TL494ID, Switching Controller IC, SO-16
$0.1700
In stock
SKU
S1-0048
Volume discounts:
- +100 6 % $0.1600
- +5000 12 % $0.1500
TL494ID, Switching Controller IC, SO-16 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The TL494ID is a fixed-frequency PWM controller designed for off-line and DC-to-DC converter applications. It offers features such as low start-up current, undervoltage lockout (UVLO) with hysteresis, and the capability to operate at frequencies up to 500 kHz. The SO-16 package facilitates easy integration into various circuit designs.
Specifications of TL494ID PWM Controller IC
- Operating Voltage: 30V
- Output Current: ±1A
- Undervoltage Lockout: 8.5V (on) / 7.9V (off)
- Operating Frequency: Up to 500 kHz
- Dimensions: 9.90 x 3.91 mm
| Package | SO-16 |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| Mounting Type | SMD/SMT |
| Components - Type | Switching Controllers |
