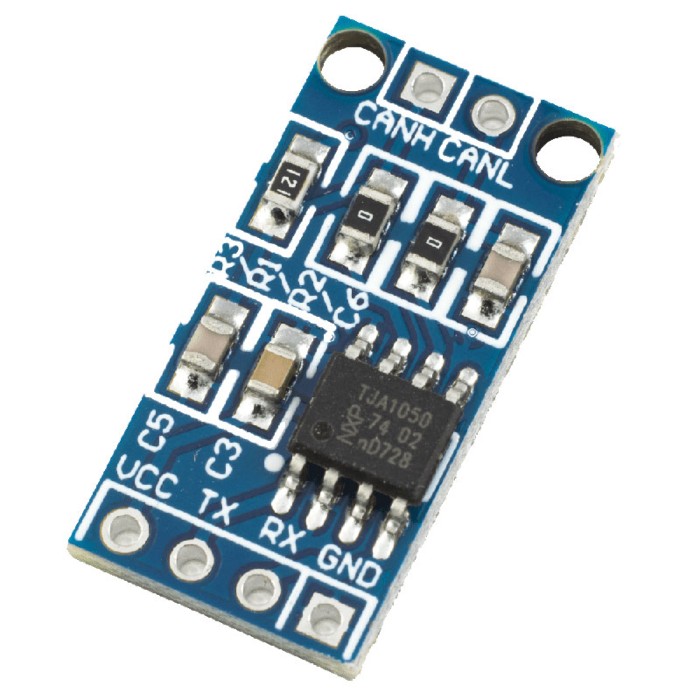

TJA1050 CAN to TTL Module
$0.7000
In stock
SKU
MOD-10-025
Volume discounts:
- +50 4 % $0.6700
- +100 6 % $0.6600
- +300 9 % $0.6400
- +500 10 % $0.6300
- +1000 11 % $0.6200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
USB to I2C/UART Converter module with CH341T Previous
The TJA1050 CAN to TTL Module is a highly reliable module designed for CAN (Controller Area Network) communication with TTL (Transistor-Transistor Logic) interface. It allows data transmission over long distances using CAN protocols, making it ideal for applications in vehicles, industrial machines, and other devices requiring robust communication networks. It supports a wide voltage range from 3.3V to 5V, making it compatible with various microcontrollers such as Arduino, AVR, and STM32. With built-in overheating and short-circuit protection, this module ensures stable and safe operation.
Specifications of TJA1050 CAN to TTL Module
-
Supply Voltage: 3.3V to 5V
-
Data Transmission Speed: Up to 1 Mbaud
-
Max CANH Line Voltage: -27V to +40V
-
Max CANL Line Voltage: -27V to +40V
-
Protocol: Full coverage of ISO 11898
-
Protection:
-
Overheating protection
-
Short-circuit protection (to both + and - power supply)
-
-
Connectors:
-
TX: Transmit data
-
RX: Receive data
-
GND: Ground
-
VCC: Power supply
-
CANL: CAN Low signal
-
CANH: CAN High signal
-
-
Dimensions: 22x12x3.5 mm
Datasheet of TJA1050 CAN to TTL Module
| Interface Type | CAN |
|---|---|
| Operating Voltage (V) | 3.3V to 5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 22x12x3.5 mm |
| Data transmission rate | 1Mbps |
| Standard | ISO 11898 |
| Voltage Levels | 3.3V, 5V |
| Chipset | TJA1050 |
| Protection | Overheating protection, Short-circuit protection |
| Direction | Bidirectional |
| Pins | 6 |
