Tilt Sensor Switch SMD - Pack of 10

[SEN-01-009]
Shop with confidence Learn More
Availability: Out of stock
SKU
SEN-01-009

The Tilt Sensor Switch SMD is a versatile and compact component used for detecting tilt or orientation changes in electronic devices. Available in various models, including X8, X23, X24, X26, X160, X200, and X3228, each with distinct specifications to meet different needs. These sensors offer high reliability, minimal electrical noise, and are suitable for use in various applications, from consumer electronics to industrial devices.

Specifications of Tilt Sensor Switch SMD

X8 Tilt Sensor Switch

  • Maximum Contact Current: 10mA

  • Insulation Resistance: 1000MΩ min at 100VDC

  • Dielectric Withstand Voltage: 500VDC for 1 minute

  • Electrical Capacitance: 2pF max

  • Conductivity: 95% min

  • Input Current: 0.1mA

  • Operating Voltage: 3.3V

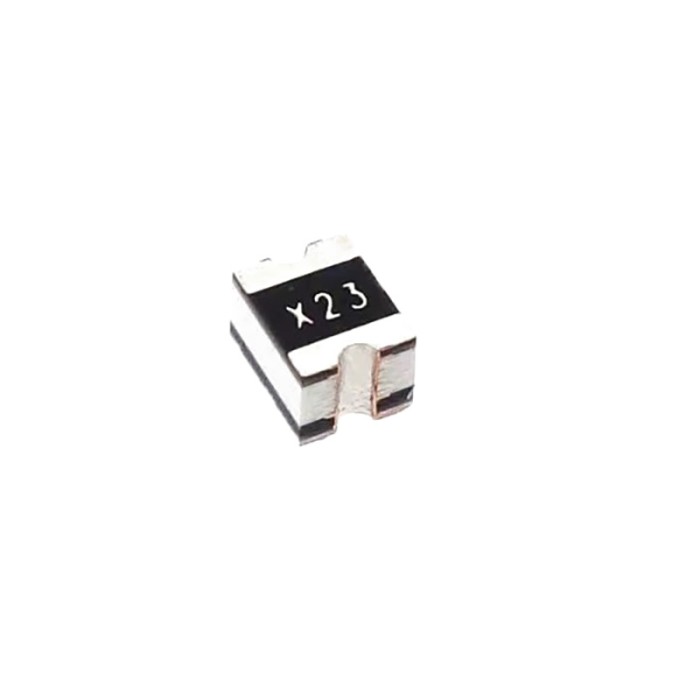

X23 Tilt Sensor Switch

  • Maximum Contact Current: 10mA

  • Insulation Resistance: 1000MΩ min at 100VDC

  • Dielectric Withstand Voltage: 500VDC for 1 minute

  • Capacitance: 5pF max

  • Conductivity: 95% min

X24 (45) Tilt Sensor Switch

  • Maximum Contact Current: 10mA

  • Insulation Resistance: 1000MΩ min at 100VDC

  • Dielectric Withstand Voltage: 500VDC for 1 minute

  • Capacitance: 5pF max

  • Conductivity: 95% min

  • Input Current: 1.0-0.1mA

  • Operating Voltage: 1.8-5.0V

X26 (60) Tilt Sensor Switch

  • Maximum Contact Current: 10mA

  • Insulation Resistance: 1000MΩ min at 100VDC

  • Dielectric Withstand Voltage: 500VDC for 1 minute

  • Capacitance: 5pF max

  • Conductivity: 95% min

  • Input Current: 1.0-0.1mA

  • Operating Voltage: 1.8-5.0V

X160 Tilt Sensor Switch

  • Maximum Contact Current: 10mA

  • Insulation Resistance: 1000MΩ min at 100VDC

  • Dielectric Withstand Voltage: 500VDC for 1 minute

  • Capacitance: 5pF max

  • Conductivity: 95% min

  • Input Current: 1.0mA

  • Operating Voltage: 5.0V

X200 Tilt Sensor Switch

  • Maximum Contact Current: 10mA

  • Insulation Resistance: 1000MΩ min at 100VDC

  • Dielectric Withstand Voltage: 500VDC for 1 minute

  • Capacitance: 5pF max

  • Conductivity: 95% min

  • Input Current: 1.0mA

  • Operating Voltage: 5.0V

X3228 Tilt Sensor Switch

  • Maximum Contact Current: 10mA

  • Insulation Resistance: 1000MΩ min at 100VDC

  • Dielectric Withstand Voltage: 500VDC for 1 minute

  • Electrical Capacitance: 2pF max

  • Conductivity: 95% min

  • Input Current: 0.01mA-5.0mA

  • Operating Voltage: 3-5V

Datasheet of Tilt Sensor Switch SMD

Datasheet: Not available
