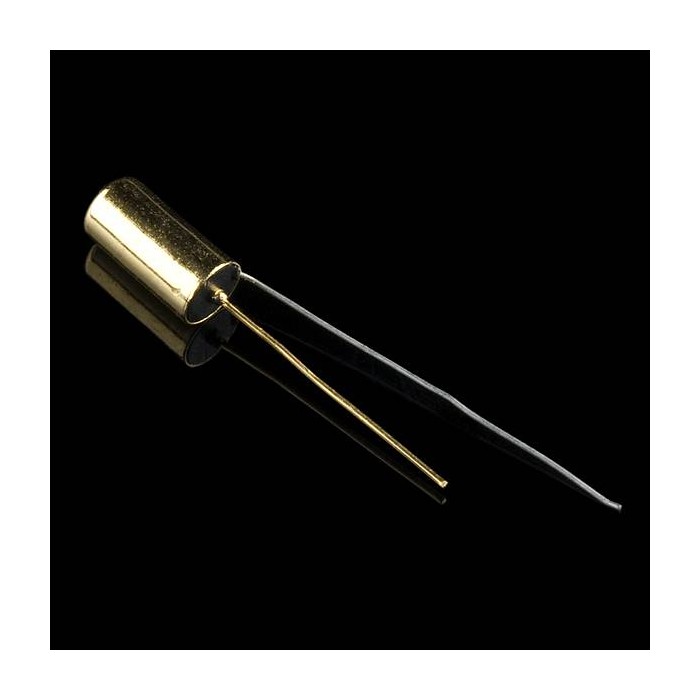

AT407 Tilt Sensor

The AT407 Tilt Sensor is used to detect orientation and tilt. It changes state when the sensor is moved from a vertical position to a tilted position. The internal ball makes contact with the pins in one position and disconnects when tilted. This tilt sensor is suitable for applications that require basic orientation detection. The AT407 Tilt Sensor is a simple component for electronics and robotics projects.

Features of AT407 Tilt Sensor - 24VDC, 1Ω

• Orientation detection
• Tilt detection
• Ball contact switching
• Simple pin-based operation

Specifications of AT407 Tilt Sensor - 24VDC, 1Ω

• Power: <6mA 24VDC
• Working life: >50,000 cycles
• Contact resistance: 1Ω
• Feeding temperature: 250℃ 3 Seconds

How to Use AT407 Tilt Sensor - 24VDC, 1Ω

1. Place the sensor in the required orientation.
2. Read the contact state from the pins.
3. Use the state change to detect tilt or upright position.

More Info

• AT407 tilt sensor with internal ball contact structure.
• Designed for basic orientation and tilt sensing.
