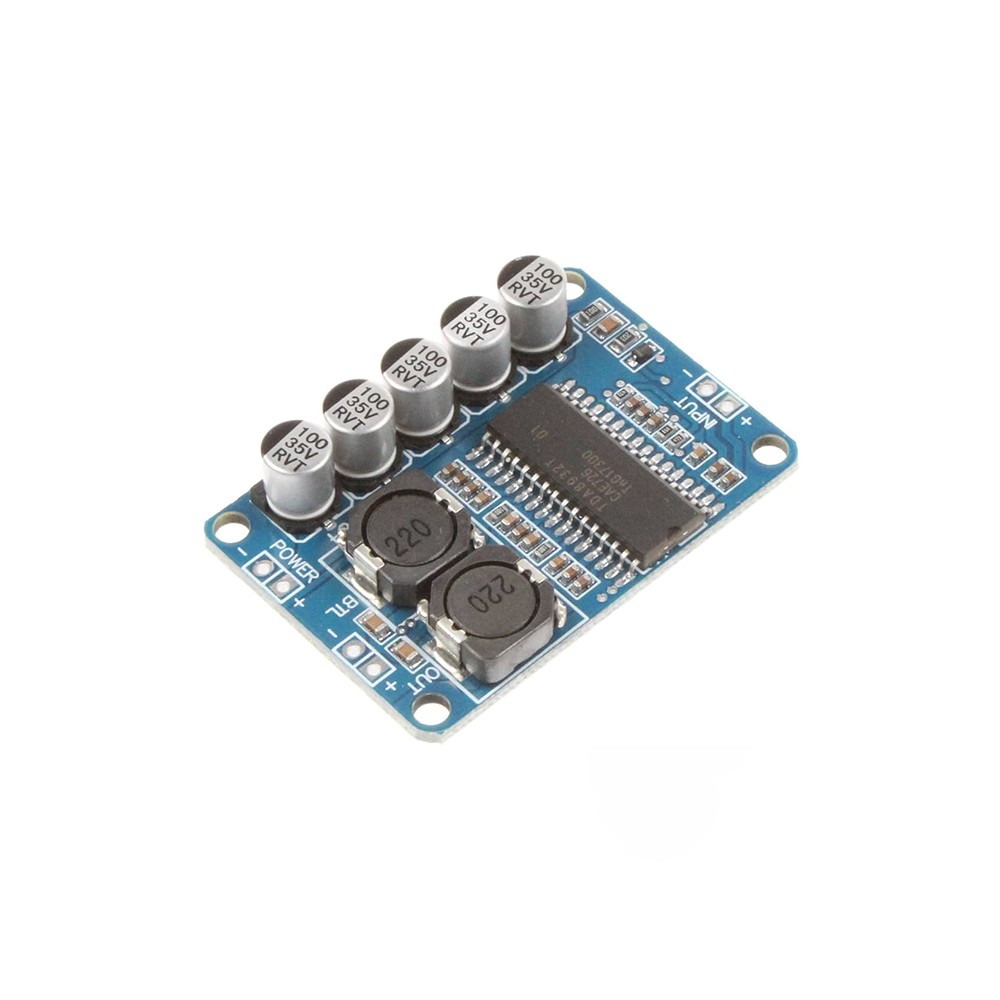

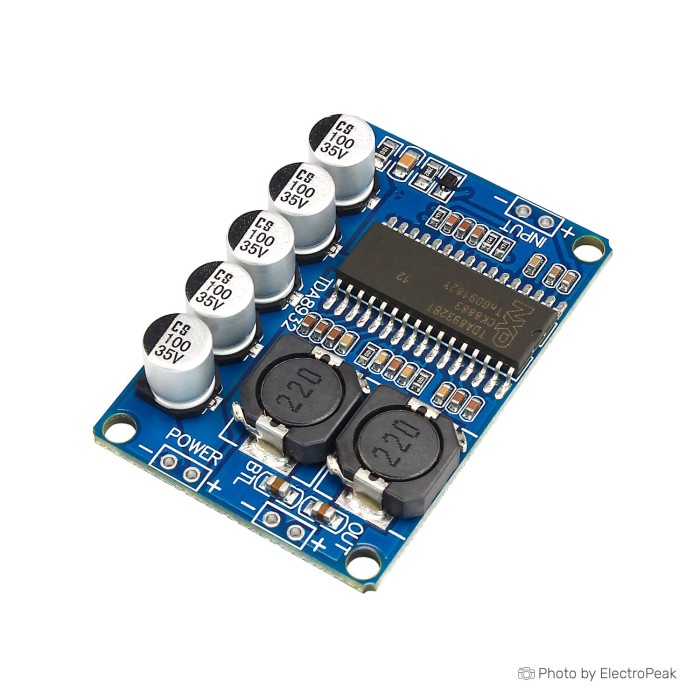

TDA8932 Digital Power Amplifier Module- 35W
$1.9500
In stock
SKU
SEN-17-138
Volume discounts:
- +50 4 % $1.8800
- +100 6 % $1.8400
- +300 8 % $1.8000
- +500 9 % $1.7700
- +1000 11 % $1.7300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PCM5102 I2S Digital Audio DAC Decoding Module Previous
TDA8932 Digital Power Amplifier Board 35W Mono Low Power Consumption uses a high-performance digital amplifier TDA8932 chip, a small size, high efficiency, high power, good sound quality, without additional installation of radiator, very suitable for the transformation of active speakers, electro-acoustic project implementation, product development and other audio applications.
Features OF TDA8932 Digital Power Amplifier Module:
- The board uses a high-performance digital amplifier TDA8932/ TDA8933 chip.
- Produce good quality sound by this module.
- Mono digital audio power amplifier chip.
- High output and low power consumption.
- Suitable for the transformation of the active speakers, product development, and other audio application.
Specification OF TDA8932 Digital Power Amplifier Module:
- Module Type TDA8932 35W
- Operating Voltage Single DC10 ~ 30V
- Recommended voltage 24V
- Current Above 2A Switching Power Supply
- Output power 35W * 1
- Speaker Impedance 4-8 ohm, 8 ohm best
- Circuit configuration Mono BTL output
- Dimensions 45x31mm
| Operating Voltage (V) | 10 - 30 |
|---|---|
| Operating Current (mA) | > 2000 |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 45 x 31 |
| Audio Function | Amplifier |
| Output Power | 35 |
| Speaker Impedance (Ω) | 4Ω, 8Ω |
| Bluetooth Ver. | No |
| Output Type | Analog |
| Channels | 1-channel |
| Chipset | TDA8932 |
