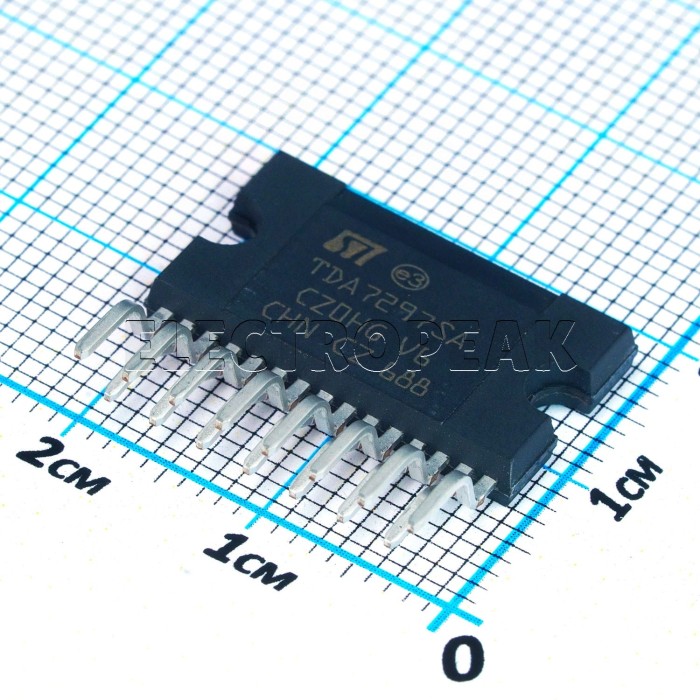

TDA7297SA, 15W Audio Amplifiers, Multiwatt-15
$0.8500
In stock
SKU
S1-0006
Volume discounts:
- +100 6 % $0.8000
- +300 8 % $0.7800
- +500 9 % $0.7700
- +1000 12 % $0.7500
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
The TDA7297A is a dual-channel class AB audio amplifier IC available in a Multiwatt-15 package. Designed for applications such as televisions and portable radios, it operates over a wide supply voltage range from 6.5V to 18V. Features like minimal external components, standby and mute functions, short-circuit and thermal overload protection make it a suitable choice for high-quality audio systems.
Specifications of TDA7297A Dual-Channel Class AB Audio Amplifier ICÂ
- Operating Supply Voltage: 6.5V to 18V
- Maximum Output Power: 2×15W into 8Ω
- Continuous Output Current per Channel: 1.5A
- Total Harmonic Distortion (THD): 0.1% at 1W
- Signal-to-Noise Ratio (SNR): 56dB
- Short-Circuit Protection: Yes
- Thermal Overload Protection: Yes
- Dimensions: 25.3mm x 10mm x 4.5mm
Datasheet of TDA7297A
For detailed technical information, refer to the TDA7297A Datasheet.
| Package | Multiwatt-15 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | 0 C° |
| Operating Temperature Max | +70 C° |
| Function | Speaker |
| Mounting Type | Through Hole |
| Components - Type | Audio Amplifiers |
| Output Power | 15W |
