TDA7297 2x15W Audio Power Amplifier Module
$1.7300
In stock
SKU
SEN-17-144
Volume discounts:
- +50 2 % $1.6900
- +100 3 % $1.6700
- +300 5 % $1.6400
- +500 6 % $1.6200
- +1000 8 % $1.6000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
JQ8900-16P MP3 Voice Broadcast Module Previous

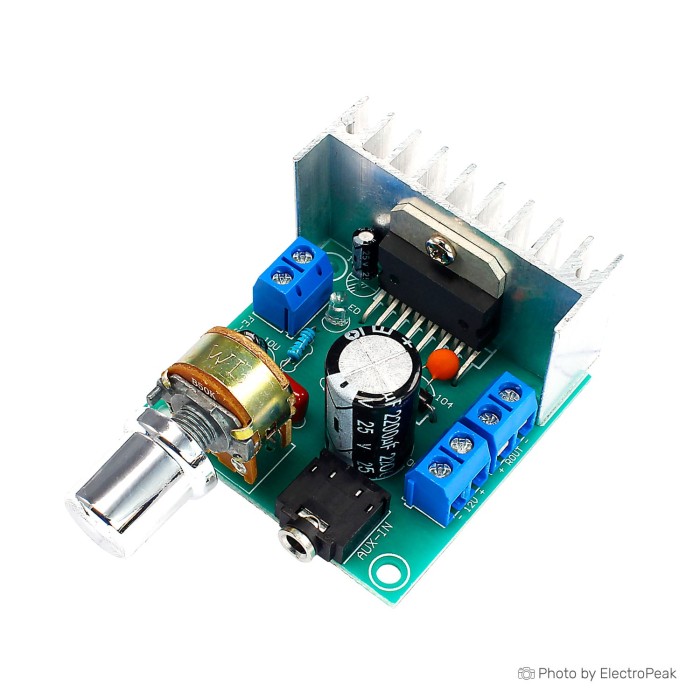

This TDA7297 stereo audio amplifier module delivers 15 watts per channel into two channels.
The board includes a large heatsink and dual-terminal screw terminal connectors for easy connection of the speaker outputs. The audio input is a stereo headphone audio jack, and volume is controlled with the onboard potentiometer.
Specifications of TDA7297 2x15W Audio Power Amplifier Module:
- Power handling: 2 x 15 watts @ 8 ohms, 10% THD; ~10W @ 1% THD
- Minimum load impedance: 4 Ohms, 8 Ohms recommended
- DC power supply input: 9V – 16V,
Maximum of 12V when driving 4 Ohm speakers - Power supply input connector: 2.1mm x 5.5mm barrel jack, connecting cable included
- Audio input connector: Mini RCA stereo headphone jack
- Built-in short-circuit and thermal overload protection
- Dimensions: 50X50X42 mm excluding potentiometer shaft
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 9V to 16V DC |
| Operating Temp (°C) | 0 to 70 |
| Dimensions (mm) | 50x50x42 mm |
| Audio Function | Amplifier |
| Output Power | 2x15W @ 8 Ohm |
| Speaker Impedance (Ω) | 4Ω, 8Ω |
| Input Types | Mini RCA stereo headphone jack |
| Bluetooth Ver. | No |
| Output Type | Analog |
| Channels | 2-channel |
| Chipset | TDA7297 |
