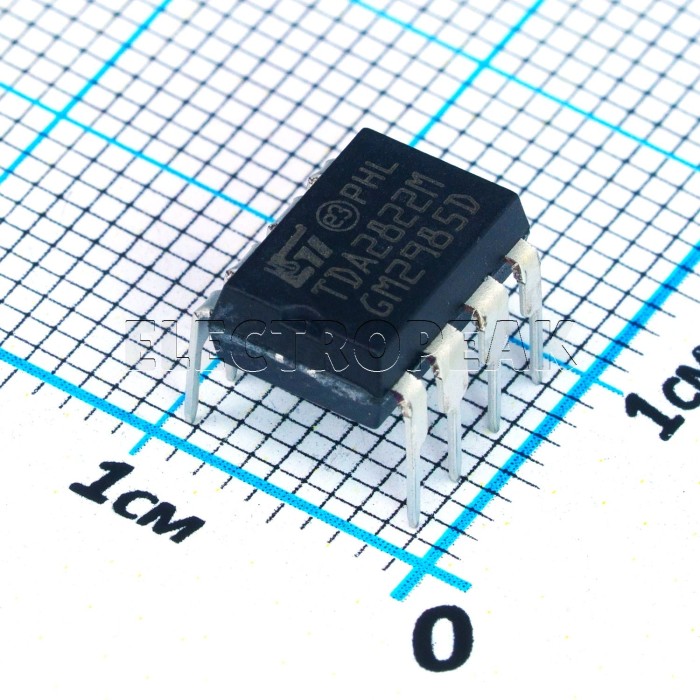

TDA2822M (12V), 2W Audio Amplifier, DIP-8
$0.0580
In stock
SKU
S1-0010
Volume discounts:
- +100 4 % $0.0558
- +500 6 % $0.0547
- +1000 8 % $0.0536
- +5000 9 % $0.0525
- +10000 12 % $0.0513
TDA2822M (12V), 2W Audio Amplifier, DIP-8 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
LM386N, 1W Audio Amplifier, DIP-8
Previous
The TDA2822M is a low-voltage audio amplifier IC available in a DIP-8 (Dual In-line Package). Designed for use in portable audio devices such as cassette players and radios, this IC features an internal gain of 20, which can be increased up to 200 by adding a resistor and capacitor between pins 1 and 8. This makes it suitable for high-quality audio applications in portable devices.
Specifications of TDA2822M Low-Voltage Audio Amplifier IC
- Operating Supply Voltage: 1.8V to 15V
- Output Power: 1W per channel into 8Ω with a 6V supply voltage
- Internal Gain: 20 (can be increased up to 200 with external components between pins 1 and 8)
- Quiescent Current Drain: 6mA
- Dimensions: 10.16mm x 4.57mm x 3.56mm
Datasheet of TDA2822M
For detailed technical information, refer to the TDA2822M Datasheet.
| Package | DIP-8 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +150 C° |
| Function | Headphone or Speaker |
| Mounting Type | Through Hole |
| Components - Type | Audio Amplifiers |
| Output Power | 2W |
