TB6560 Stepper Motor Driver
SAVE
As low as $3.9500
In stock
Only %1 left
SKU
MTR-09-008
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TL-Smoother Motor Driver Filter Vibrating Eliminator for 3D Printer- V1.3 Previous

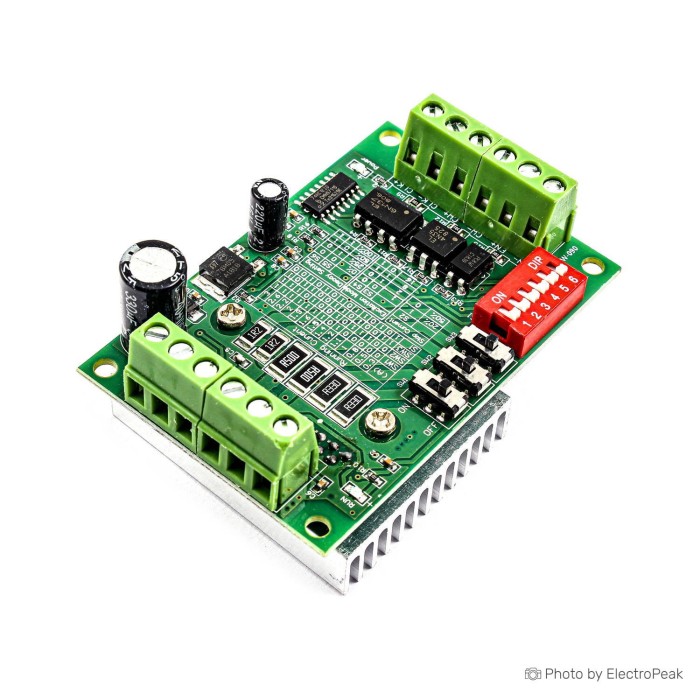

The TB6560 Stepper Motor Driver Module is designed for controlling two-phase and four-phase stepper motors. It uses the TB6560AHQ chip and includes protection features for high temperature and overcurrent conditions. The module supports smooth motor movement through sinusoidal drive control and helps reduce missed steps. It is suitable for two-wire and four-wire stepper motors in 42 and 57 frame sizes. A 6N137 high-speed optical interface is included for stable step control.
Features of TB6560 Stepper Motor Driver Module
- 10-35V DC operating voltage
- Recommended 24V DC supply
- TB6560AHQ main chip
- High-temperature protection
- Overcurrent protection
- 6N137 high-speed optical isolation
- Automatic semi-flow function
- Supports multiple stepping modes
Specifications of TB6560 Stepper Motor Driver Module
- Working voltage: 10-35V DC
- Recommended voltage: 24V DC
- Maximum output current: 3A
- Higher-current model: up to 4A
- Main chip: TB6560AHQ
- Motor support: two-phase stepper motors
- Motor support: four-phase stepper motors
- Motor support: four-wire stepper motors
- Motor support: six-wire stepper motors
- Step mode: full step
- Step mode: half step
- Step mode: 1.8 step
- Step mode: 1.16 step
- Subdivision: up to 16 subdivisions
- Higher-current subdivision: up to 32 subdivisions
- Optical coupling: 6N137 high-speed
- Dimensions: 75x50x33 mm
- Color: green
How to Use TB6560 Stepper Motor Driver Module
- Connect a DC power supply within the 10-35V range.
- Wire the stepper motor according to its two-phase, four-phase, four-wire, or six-wire type.
- Select the required stepping mode and subdivision setting.
- Apply control signals through the optical interface.
More Info
- Suitable for 42 and 57 frame stepper motors within 3A.
- Not suitable for stepper motors over 3A.
