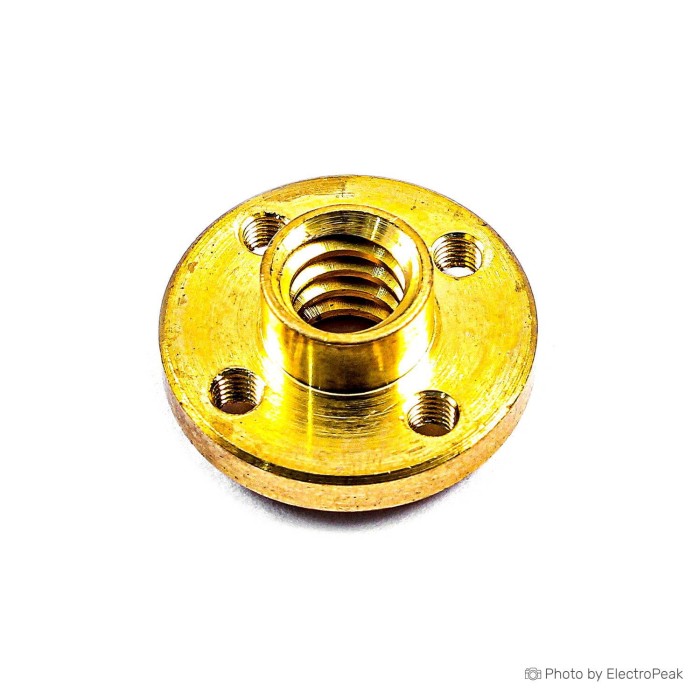

T8 Flange Lead Screw Nut For 3D Printer (Pitch 2mm Lead 2mm)

T8 Flange Lead Screw Nut is a lead screw nut for linear motion applications. It is designed for use with a T8 lead screw and supports accurate linear movement. The flange design keeps the part compact and easy to integrate into mechanical assemblies. Its brass body provides a durable construction for lead screw systems. This nut is commonly used in CNC, laser, 3D printer, and lifting jack applications.

Features of T8 Flange Lead Screw Nut

• Flange design
• Accurate linear motion
• Self-locking behavior
• Compact size
• High load capacity

Specifications of T8 Flange Lead Screw Nut

• Product type: Lead screw nut
• Inner diameter: 8 mm
• Pitch: 2 mm
• Screw slot: 2 mm
• Flange height: 5 mm
• Body material: Brass
• Size: 45x22x13.5 mm
• Backlash: 0.05 to 0.1

How to Use T8 Flange Lead Screw Nut

1. Pair the nut with a T8 lead screw.
2. Install it in the intended linear motion mechanism.
3. Use it in a vertical setup when possible.

More Info

• Lead screws convert rotational motion into linear motion.
• Horizontal use may increase error.
