STM32F405RGT6, 12 bit 168 MHz STM32F40 Microcontroller, LQFP-64
[S2-0013]
Volume discounts:
- +25 4 % $3.12
- +100 6 % $3.06
- +300 8 % $2.99
- +500 10 % $2.93
- +1000 12 % $2.86
Shop with confidence
Learn More
Availability:
SKU
S2-0013
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$3.25

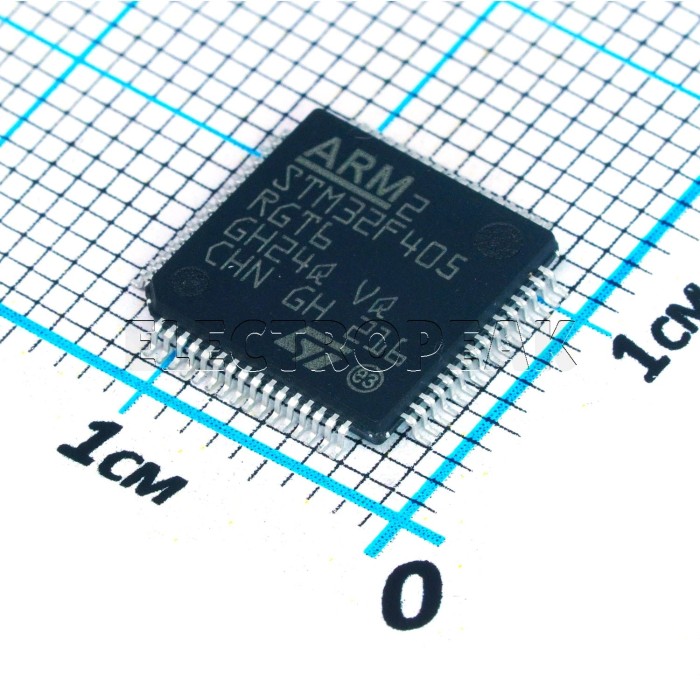

The STM32F405RGT6 microcontroller is a system-on-chip (SoC) with a 32-bit ARM Cortex-M4 core, designed by STMicroelectronics and offered in an LQFP-64 package. This microcontroller supports operating frequencies up to 168 MHz and includes 1 MB of flash memory and 192 KB of SRAM. The STM32F405RGT6 supports multiple communication interfaces such as I²C, SPI, UART, USB, CAN, and Ethernet, making it suitable for applications requiring high processing power and complex communications.
Specifications of STM32F405RGT6 32-bit Microcontroller
- Processor Core: ARM Cortex-M4 with Floating Point Unit (FPU)
- Operating Frequency: Up to 168 MHz
- Program Memory: 1 MB Flash
- Data Memory: 192 KB SRAM
- Number of I/Os: Up to 51 GPIO pins
- Interfaces: I²C, SPI, UART, USB, CAN, Ethernet
- Supply Voltage: 2.0V to 3.6V
- Package: LQFP-64 (10×10 mm)
- Operating Temperature Range: -40°C to 85°C
| Package | LQFP-64 |
|---|---|
| Packaging | Tray |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| ADC Resolution | 12 bit |
| Mounting Type | SMD/SMT |
| Components - Type | ARM Microcontrollers - MCU |
| Maximum Clock Frequency | 168 MHz |
| Processor Series | STM32F40 |
