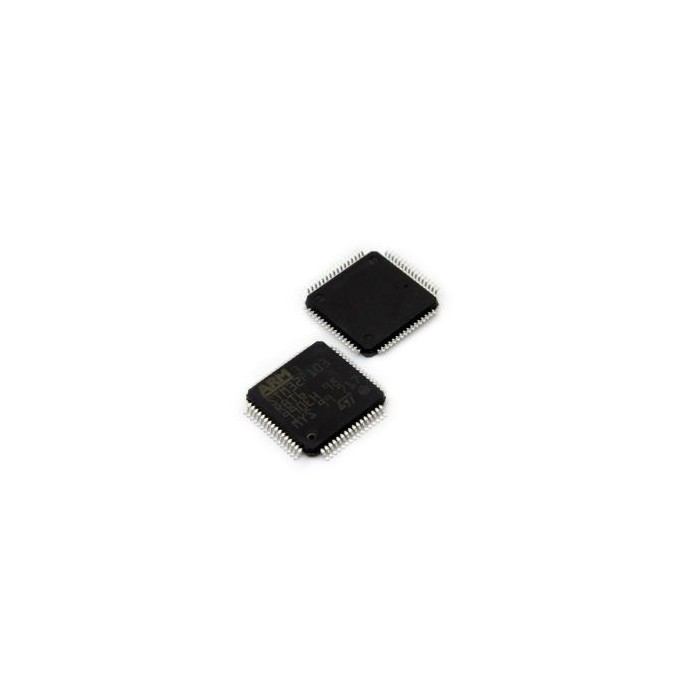

STM32F103RBT6, 12 bit 72 MHz ARM Cortex M Microcontroller, LQFP-64
$0.0000
Out of stock
SKU
S2-0024
Shop with confidence
Learn More
ATTINY13A-SSU, 10 bit 20 MHz tinyAVR Microcontroller, SO-8 (SOP-8)
Previous
The STM32F103RBT6 microcontroller is a high-performance, low-power 32-bit microcontroller based on the Arm® Cortex®-M3 core. This chip features 128 KB of flash memory, 20 KB of SRAM, and operates at frequencies up to 72 MHz. With a range of communication interfaces such as USB, CAN, and USART, the STM32F103RBT6 is suitable for various applications. This microcontroller is available in a 64-pin LQFP package.
Specifications of STM32F103RBT6 Microcontroller
- Architecture: 32-bit Arm® Cortex®-M3 core
- Flash Memory: 128 KB
- SRAM: 20 KB
- Operating Frequency: Up to 72 MHz
- Operating Voltage: 2.0 to 3.6 volts
- Communication Interfaces: USB, CAN, 3×USART, 2×SPI, 2×I2C
- Timers: 3 general-purpose 16-bit timers, 1 advanced 16-bit timer, 2 watchdog timers, 1 system timer
- Analog-to-Digital Converter (ADC): 2 units with 12-bit resolution
- Package: 64-pin LQFP
| Package | LQFP-64 |
|---|---|
| Packaging | Tray |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| ADC Resolution | 12 bit |
| Mounting Type | SMD/SMT |
| Components - Type | ARM Microcontrollers - MCU |
| Maximum Clock Frequency | 72 MHz |
| Processor Series | ARM Cortex M |
