SOP8/SSOP8 SMD to DIP Adapter
$0.0290
In stock
SKU
ELC-09-010
Volume discounts:
- +500 3 % $0.0280
- +1000 7 % $0.0270
- +5000 10 % $0.0260
- +10000 14 % $0.0250
SOP8/SSOP8 SMD to DIP Adapter is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
USB 3.0 Type-A Female to DIP Adapter Breakout Board Previous

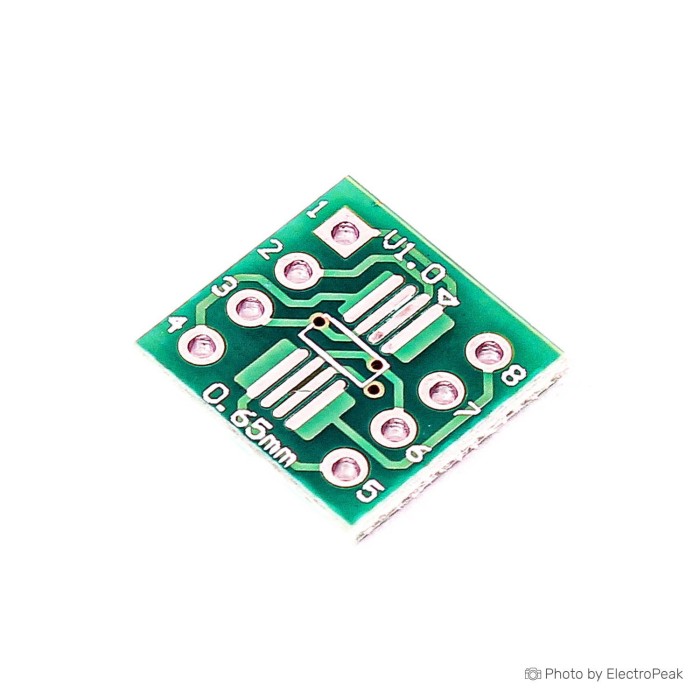

SOP8/SSOP8 SMD To DIP Adapter Board is a double-sided PCB board for converting SMD packages to DIP format. It supports SOP8 and SSOP8 IC packages and provides an 8-pin layout for practical prototyping. The board can be used on breadboards and perforated boards, and its pin spacing is suitable for standard pin headers. One side is suitable for pins with a pitch of 0.65 mm, while the other side is suitable for pins with a pitch of 1.27 mm.
Features of SOP8/SSOP8 SMD To DIP Adapter Board - 8 Pin
- Double-sided PCB design
- SOP8 and SSOP8 support
- 8-pin layout
- Breadboard and perforated board use
- Standard 2.54 mm pin spacing
- 0.65 mm pad pitch
- 1.27 mm pad pitch
Specifications of SOP8/SSOP8 SMD To DIP Adapter Board - 8 Pin
- Type: Double layer
- Supported IC package: SOP8
- Supported IC package: SSOP8
- Pin spacing: 2.54 mm
- Breadboard and perforated board compatibility: Yes
- Dimensions: 12x12 mm
- Thickness: 1.6 mm
- Material: PCB board
- Side A: SOP8/SOIC8/SO8 to DIP8
- Side B: SSOP8/TSSOP8 to DIP8
- Pad pitch: 0.65 mm
- Pad pitch: 1.27 mm
- Pin Number: 8 Pin
- Size: 10.92mm x 10.16mm
How to Use SOP8/SSOP8 SMD To DIP Adapter Board - 8 Pin
- Match the IC package with the appropriate side of the board.
- Align the SMD pins with the corresponding pads.
- Solder the IC to the board.
- Insert the adapter into a breadboard or perforated board using the pin headers.
More Info
- Designed for 8-pin SMD-to-DIP conversion.
- Suitable for pin-header based prototyping.
