SOP28/SSOP28/TSSOP28 SMD to DIP Adapter
SAVE
As low as $0.0560
In stock
Only %1 left
SKU
ELC-09-008
SOP28/SSOP28/TSSOP28 SMD to DIP Adapter is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SOP20/SSOP20/TSSOP20 SMD to DIP Adapter Previous

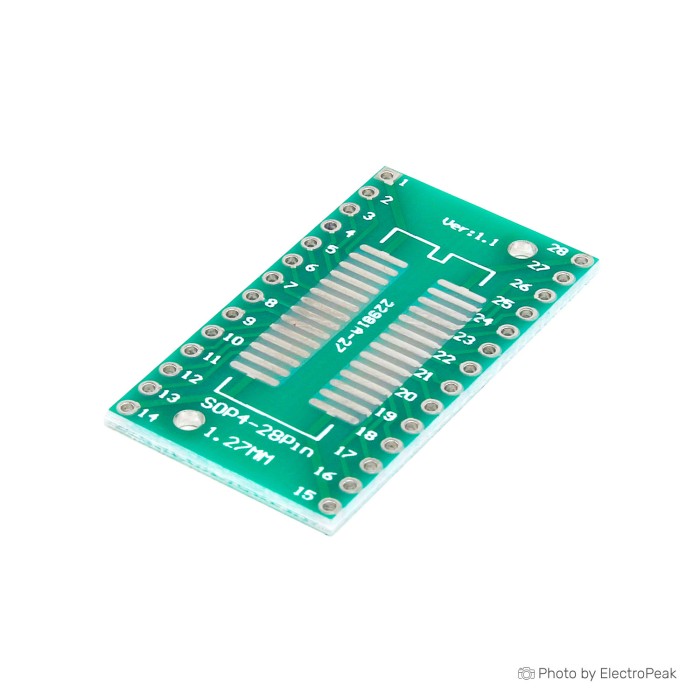

The SOP28/SSOP28/TSSOP28 SMD to DIP Adapter Board is a double-sided PCB adapter for working with SMD IC packages in a DIP-style format. It is designed for SOP28, SSOP28, and TSSOP28 ICs, making it suitable for breadboard and PCB prototyping workflows. The board provides a 2.54mm pin pitch for standard DIP header connection. It also supports exposed pad IC packages. The adapter uses one side for 0.65mm pad pitch and the other side for 1.27mm pad pitch. This board is built as a practical interface for 28-pin SMD integration.
Features of SOP28/SSOP28/TSSOP28 SMD To DIP Adapter Board - 28 Pins, 2.54mm
- Double-sided PCB design
- Supports SOP28, SSOP28, and TSSOP28 ICs
- 2.54mm DIP pin pitch
- Exposed pad support
- 28-pin layout
- 0.65mm pad pitch side
- 1.27mm pad pitch side
Specifications of SOP28/SSOP28/TSSOP28 SMD To DIP Adapter Board - 28 Pins, 2.54mm
- Type: Double-sided
- Suitable for: SOP28 ICs
- Suitable for: SSOP28 ICs
- Suitable for: TSSOP28 ICs
- Pad Pitch: 1.27mm
- Pad Pitch: 0.65mm
- Pin Pitch: 2.54mm
- Hole Inner Diameter: 1mm
- Material: PCB Board
- Thickness: 1.6mm
- Pin Number: 28 Pins
- Main Color: Green
- Size: 20.3mm x 35.5mm
- Approximate Dimensions: 37x20mm
- Board Design: Two-layer and double-sided
- Board Thickness: 1.6mm
- Material: High-quality PCB with heat resistance
- Compatibility: Breadboards and PCB boards
- Application: SMD IC transfer to DIP for experimental projects
How to Use SOP28/SSOP28/TSSOP28 SMD To DIP Adapter Board - 28 Pins, 2.54mm
- Place the IC on the matching pad pitch side.
- Solder the IC pins to the adapter pads.
- Connect the 2.54mm pins to a breadboard or PCB.
- Use the adapter for prototyping or testing.
More Info
- Suitable for prototyping workflows.
- Useful for breadboard integration.
- Designed for SMD to DIP conversion.
