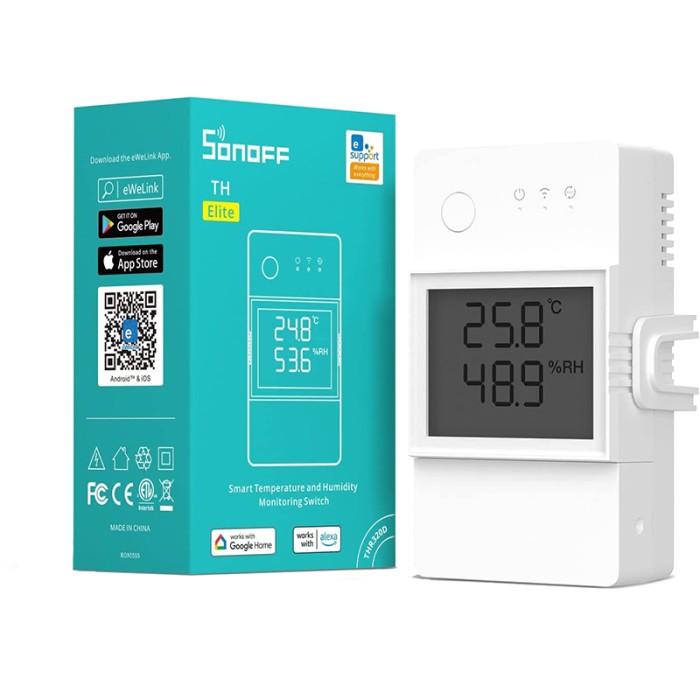

Sonoff TH Elite Temperature and Humidity Controller

The Sonoff TH Elite Temperature and Humidity Controller is a versatile and intelligent device designed to monitor and control temperature and humidity in real-time. Available in two models, THR316D (16A max) and THR320D (20A max), it features an LCD screen for easy monitoring and offers a range of connectivity options including Wi-Fi, RJ11 sensor input, and dry contact output. This controller is perfect for home automation, allowing you to control heating systems, monitor environmental conditions, and receive alerts via the eWeLink app. It supports integration with Home Assistant, Alexa, Google Assistant, and IFTTT for enhanced automation.

Specifications of Sonoff TH Elite Temperature and Humidity Controller

• Model Name: THR316D / THR320D
• Input/Output Voltage:
  • THR316D: 100-240V ~ 50/60Hz, 16A max
  • THR320D: 100-240V ~ 50/60Hz, 20A max
• Material: PC V0
• Wi-Fi: IEEE 802.11 b/g/n 2.4 GHz
• Color: White
• Dry Contact: 5-30V, 1A max
• Dimensions: ---
• Operating Temperature Range: (If available, specify)
• Humidity Range: (If available, specify)
• Compatibility: THS01, DS18B20, MS01 sensors
• Sensor Connector: RJ11, supporting hot plug
• Supported Voice Commands: Alexa, Google Assistant
• Supported Platforms: eWeLink, Home Assistant, IFTTT
• Installation: DIN rail mountable, can be placed in an electrical panel

How to Use Sonoff TH Elite Temperature and Humidity Controller

1. Installation: Mount the Sonoff TH Elite on a DIN rail or place it in the desired location. Connect the power input and load to the respective terminals on the device.
2. Sensor Connection: Connect the desired sensor (THS01, DS18B20, MS01) to the RJ11 port on the top of the device.
3. Power On: Ensure the power is off before making connections. Once connected, power on the device.
4. App Pairing: Use Bluetooth to pair the device with the eWeLink app for remote monitoring and control.
5. Automation Setup: Set up automation rules, such as turning devices on/off based on temperature or humidity thresholds, via the app or supported platforms.
6. Manual Control: Use the button on the front to manually enable or disable the relay.
