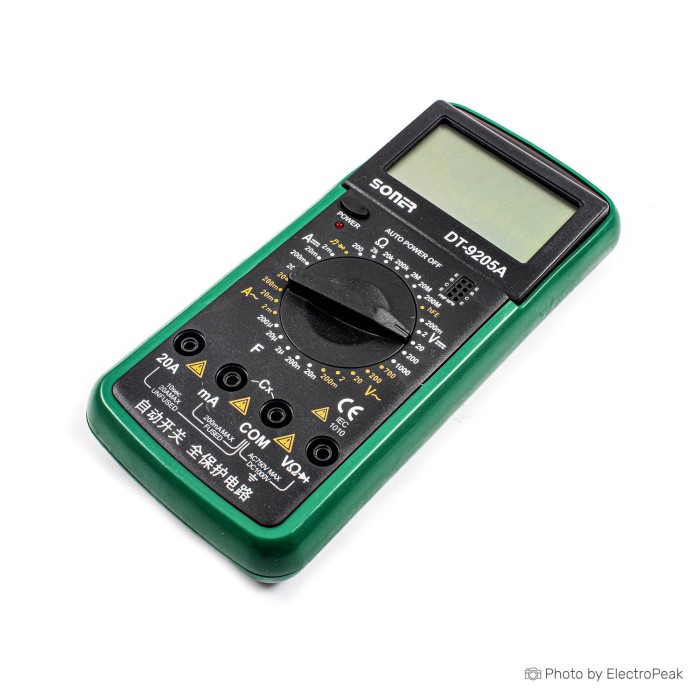

Soner DT-9205A Digital Multimeter

Soner DT-9205A Digital Multimeter is a battery-operated handheld multimeter for electrical and electronics measurement tasks. It offers digital readout, a large display, and rotary FUNCTION and RANGE selection for straightforward operation. The DT-9205A supports DC and AC voltage, DC and AC current, resistance, capacitance, diode test, transistor HFE test, and on-off circuit testing. It is designed with auto power off, overload protection, and a 3-1/2 digit LCD display. This multimeter is suitable for engineering design, laboratory work, production testing, factory service, field operation, and industrial maintenance.

Features of Soner DT-9205A Digital Multimeter

• 3-1/2 digit LCD display
• Large digital display
• Rotary FUNCTION selection
• Rotary RANGE selection
• Auto power off
• Full range overload protection
• Capacitance auto-zeroing
• Battery-operated design
• Diode test function
• Transistor HFE test function

Specifications of Soner DT-9205A Digital Multimeter

• Model: DT-9205A
• DC Voltage: 200mV / 2V / 20V / 200V / 1000V
• AC Voltage: 200mV / 2V / 20V / 200V / 750V
• DC Current: 20µA / 200µA / 2mA / 20mA / 200mA / 2A / 20A
• AC Current: 20µA / 200µA / 2mA / 20mA / 200mA / 2A / 20A
• Resistance: 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ / 20MΩ / 200MΩ
• Capacitance: 2nF / 20nF / 200nF / 2µF / 20µF / 50µF
• Fuse Protection: 250V / 0.2A
• Operating Temperature: 20-40 degrees Celsius
• Display Type: Digital
• Size: 19x8.8 cm
• Display Height: 25mm
• Measurement Rate: 2s ~ 3s
• Over Range Indication: œ1 figure only in the display
• Automatic Negative Polarity Indication
• Input Voltage: Single standard 9V battery
• Voltage Range: 0 ~ 1000Vdc, 0 ~ 700Vac
• Current Range: 0 ~ 20Adc, 0 ~ 20Aac
• Resistance Range: 0 ~ 200M
• Capacitance Range: 0 ~ 200uF
• Operating Temperature: 0°C ~ 40°C
• Operating Humidity: 0 ~ 75% RH
• Storage Temperature: -10°C ~ 50°C
• Storage Humidity: 0 ~ 75% RH
• Size: 191mm x 89mm x 35mm (LxWxH)

How to Use Soner DT-9205A Digital Multimeter

1. Insert a standard 9V battery.
2. Select the required FUNCTION and RANGE with the rotary switch.
3. Connect the test leads to the circuit or component.
4. Read the value on the digital LCD display.
5. Switch the unit off after use, or allow auto power off to activate.

More Info

• Accessories include test leads, spare fuse 0.5A, and operating instructions.
• The battery symbol appears when battery voltage drops below the operating voltage.
