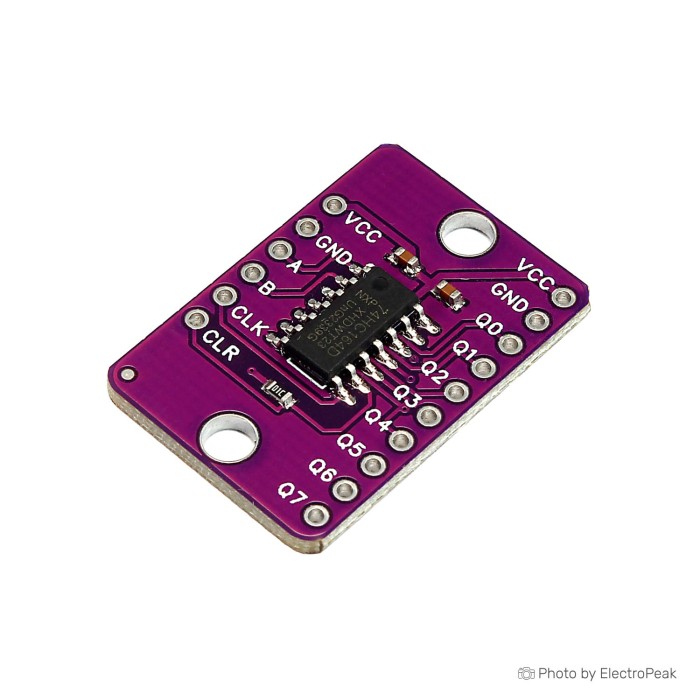

SN74HC164D 8bit Shift Register Module
$0.9500
In stock
SKU
misc-04-048
Volume discounts:
- +50 4 % $0.9100
- +100 6 % $0.8900
- +300 7 % $0.8800
- +500 9 % $0.8600
- +1000 12 % $0.8400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
FG085 MiniDDS Function Generator Previous
SN74HC164D 8-Bit Shift Register Module is a shift register module with AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial A and B inputs provide control over incoming data. A low level at either input inhibits new data entry and resets the first flip-flop to the low level at the next clock pulse. This module is suitable for electronics and robotics applications that require serial data shifting and buffered signal handling.
Features of SN74HC164D 8-Bit Shift Register Module
- AND-gated serial inputs
- Asynchronous clear (CLR) input
- Fully buffered clock and serial inputs
- Wide operating voltage range
Specifications of SN74HC164D 8-Bit Shift Register Module
- Model: SN74HC164D
- Product Type: 8-Bit Shift Register Module
- Operating Voltage: 2V to 6V
- Serial Inputs: A and B
- Clear Input: CLR
- Clock Input: CLK
How to Use SN74HC164D 8-Bit Shift Register Module
- Connect the module within the 2V to 6V operating range.
- Use the A and B serial inputs to control incoming data.
- Apply clock pulses to shift data through the register.
- Use CLR to clear the register when needed.
More Info
- Low level at either gated input inhibits entry of new data.
- Low level at either gated input resets the first flip-flop on the next CLK pulse.
| Interface Type | Digital, Parallel |
|---|---|
| Operating Voltage (V) | 2V to 6V |
| Operating Temp (°C) | -40 to 85 |
| Function | Shift Register |
| Application | Electronics,Robotics |
| Output Type | Digital |
| Chipset | SN74HC164D |
