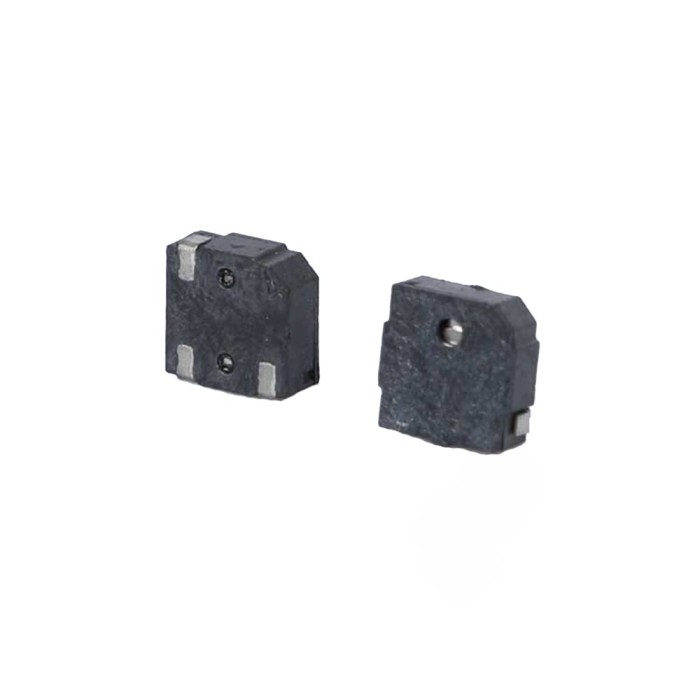

SMD Passive Buzzer 5020 Package
$0.2400
In stock
SKU
SEN-17-160
Volume discounts:
- +100 4 % $0.2300
- +1000 8 % $0.2200
- +10000 13 % $0.2100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DY-SV20F 5W MP3 Playback Module Previous
Introducing the SMD Passive Buzzer 5020 Package, the perfect choice for all your audio signal needs. This compact and versatile buzzer is ideal for a wide range of applications, from household electronics to industrial equipment. With a diameter of only 5mm and a height of 2mm, it can easily be integrated into any electronic circuit. Its low power consumption and easy-to-use design make it a popular choice among hobbyists and professionals alike.
Equipped with a frequency range of 2.3kHz to 3.3kHz, this buzzer produces a loud and clear sound, making it suitable for use in noisy environments. It also has a maximum voltage of 3V and a current rating of 25mA, ensuring reliable and consistent performance. With the SMD Passive Buzzer 5020 Package, you can easily add audio signals to your projects and enhance the overall user experience. Upgrade your electronic devices with this top-of-the-line buzzer today.
Specification of SMD Passive Buzzer 5020 Package:
- Rated Voltage: 3VAC
- Operating Voltage: 2~4V
- Rated Current: 100mA (Max)
- Output Sound: 78dB (Min)
- Coil Resistance (dB): 12±3Ω
- Resonant Frequency: 4000Hz
- Operating Temperature: -30~+70„
- Storage Temperature: -40~+85„
- ROHS: Yes
- Size: 5x5x2 mm
| Driver Type | Electromagnetic |
|---|---|
| Resonant Frequency | 4000Hz |
| Speaker Impedance (Ω) | 12±3Ω |
| Sound Level | 78dB (Min) |
| Frequency Response | 2.3kHz to 3.3kHz |
| Speaker Type | Buzzer |
| Diameter (mm) | 5mm |
| Operating Voltage (V) | 2~4V |
| Mounting Type | SMD (Surface Mount) |
| Dimensions (mm) | 5x5x2 mm |
| Operating Temp (°C) | -30~+70℃ |
