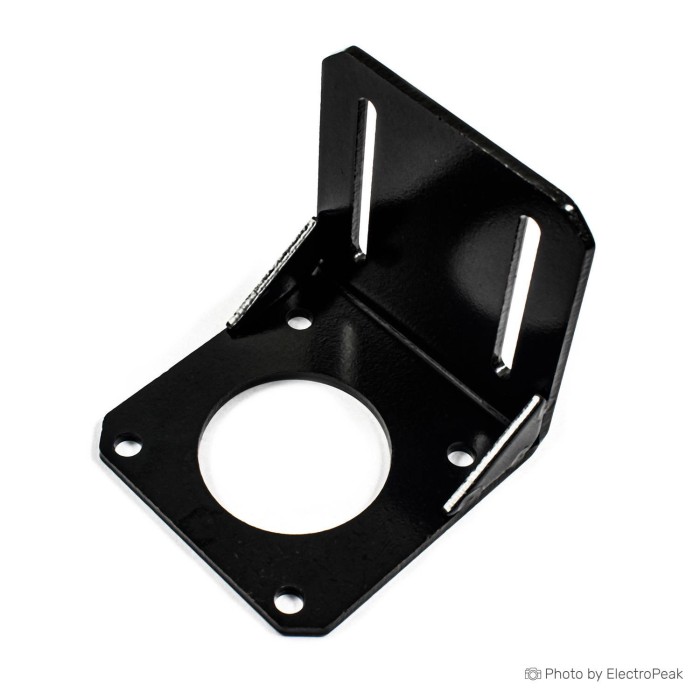

Steel L-Shape Mounting Bracket for NEMA23 57mm Stepper Motors

The Steel L-Shape Mounting Bracket for NEMA23 Stepper Motors is designed for securing stepper motors on a mounting surface. It provides a 90-degree motor position and uses a steel construction for solid support. This bracket is suitable for NEMA23 stepper motors and includes the key sizing and structure details needed for selection. The long base design supports bracket mounting in a fixed position. It is a practical mounting solution for NEMA23 stepper motor installations.

Features of Steel L-Shape Mounting Bracket for NEMA23 Stepper Motors - 57mm, 3mm

• Suitable for NEMA23 stepper motors
• 57mm motor flange size
• Long base design
• 3mm bracket thickness
• 90-degree motor positioning
• Steel construction

Specifications of Steel L-Shape Mounting Bracket for NEMA23 Stepper Motors - 57mm, 3mm

• Product Type: Steel L-Shape Mounting Bracket
• Compatibility: NEMA23 stepper motor
• Motor Flange Size: 57mm
• Base: Long base
• Thickness: 3mm
• Material: Steel
• Motor Angle: 90 degrees
• Color: Black
• Mounting Screws: Included

How to Use Steel L-Shape Mounting Bracket for NEMA23 Stepper Motors - 57mm, 3mm

1. Align the bracket with the mounting surface.
2. Position the NEMA23 stepper motor on the bracket.
3. Fix the motor at the 90-degree angle.
4. Secure the bracket and motor in place with the mounting screws.

More Info

• Designed for stepper motor mounting applications.
• Built for NEMA23 installations with a 57mm flange size.
