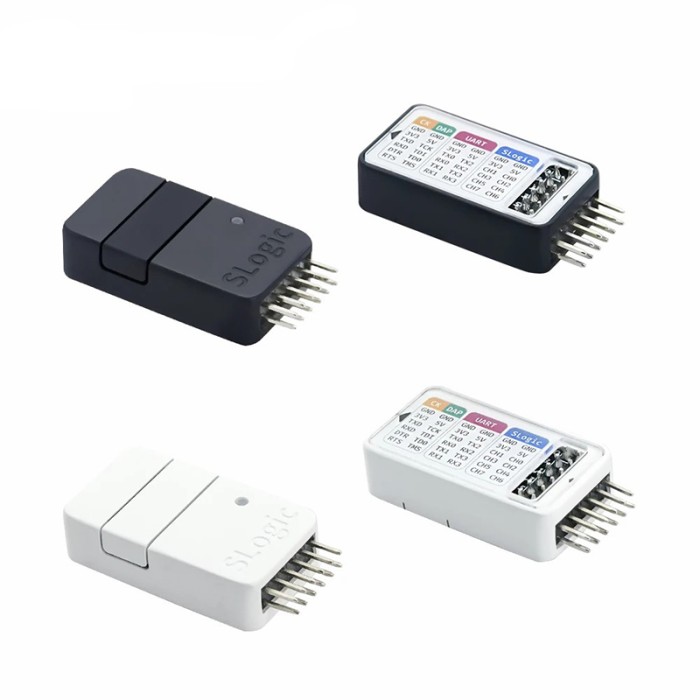

Sipeed SLogic Combo 8 Logic Analyzer

The SLogic Combo 8 is a versatile development tool that integrates the functionalities of a logic analyzer, CKLink debugger, DAP-Link debugger, and UART module (USB2UART). It allows for arbitrary switching between these functions via buttons. This 4-in-1 tool offers a maximum sampling rate of 80 MHz, supports up to 8 channels, and is compatible with multiple platforms. Despite its compact form factor, it provides a wide range of over 130 analysis protocols.

As a logic analyzer, it offers a maximum sampling frequency of 80 MHz, enabling the analysis of a broad range of protocols in conjunction with a host computer. When used as a UART module, it supports up to 4 serial ports with a maximum baud rate of 20 Mbps, making it suitable for various applications that rely on serial communication. As a CKLink or DAPLink, it aids in debugging RISC-V and ARM-based chips, with an additional serial port available for log observation.

Key features of Sipeed SLogic Combo 8 Logic Analyzer

• 4 IN 1 multi-function

• Maximum sampling rate of 80MHz

• Maximum 8 channels

• Ultra-small size

• Multi-platform support

• 130+ analysis protocols

Specification of Sipeed SLogic Combo 8 Logic Analyzer

• Maximum Channel Number: 8CH

• Maximum Sampling Rate: 80M

• Transmission Bandwidth: 320Mb/s

• Sampling Mode: Stream

• Typical Configuration: 80M@4CH 40M@8CH

• Signal Input Range: 0~3.6V

• High and Low Level Thresholds: VIN>2V VIL＜0.8V

In Windows environment, the SLogic Combo 8 has maximum transmission bandwidth of 160 Mb/s. The typical configuration includes 80M@2CH and 40M@4CH.

CKLink Function Parameters

• JTAG Clock Rate: 16M

• Typical Dump Speed: 1200KB/s

• Debug Serial Port: Up to 20Mbps

DAPLink Function Parameters

• Debug Serial Port: Up to 20Mbps

• Typical Burning Speed: 110KB/s

UART Function Parameters

• Maximum Baud Rate: 2×20Mbps+2×1Mbps

• Total Bandwidth: 42Mbps

Indicator light status of sipeed SLogic Combo 8 Logic Analyzer
