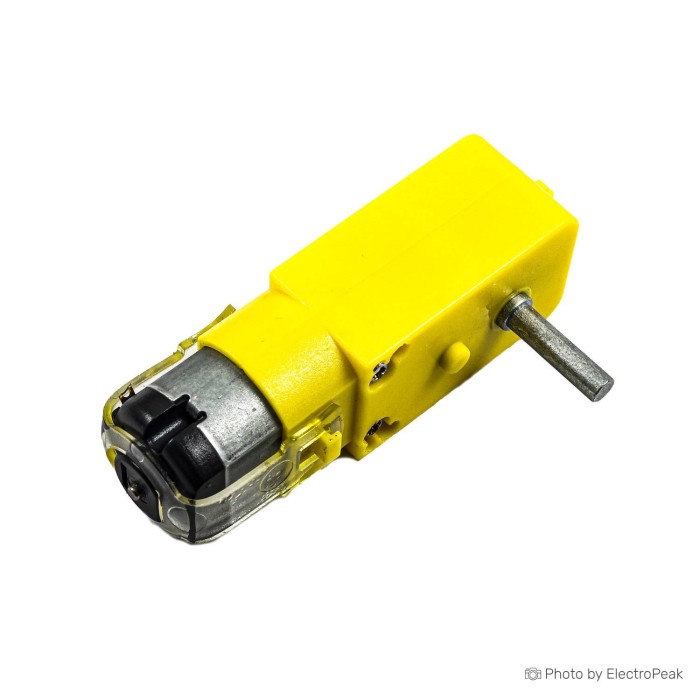

Single Axis TT DC Gear Motor - 1:120, 3-6V (Metal Shaft)

Single Axis TT DC Gear Motor is a DC gear motor with a single-shaft output and a metal shaft. It operates at 3-6V and uses a 1:120 reduction ratio. The motor is specified with a current of 100 ~ 120 mA and noise below 65dB. Output speed is listed as 30 RPM at 3V and 100 RPM at 6V. The body size is 70x18.5x18.5 mm. It also includes a single head D-axis output, a PH2.0 interface, and a 20cm cable.

Features of Single Axis TT DC Gear Motor - 1:120, 3-6V, Metal Shaft

• Single shaft output
• Metal shaft
• 1:120 reduction ratio
• Low noise operation
• PH2.0 interface
• 20cm cable
• TT motor single axis design

Specifications of Single Axis TT DC Gear Motor - 1:120, 3-6V, Metal Shaft

• Voltage: DC 3V-6V
• Current: 100 ~ 120 mA
• Reduction ratio: 120:1
• Noise: <65dB
• Speed at 3V: 30 RPM
• Speed at 6V: 100 RPM
• Body size: 70x18.5x18.5 mm
• Current: 3V<=150mA 6V<=200mA No load
• No-load speed: about 50 rpm (3V) about 100 rpm (6V)
• Output: single head D-axis output
• Interface: PH2.0
• Cable: single head PH2.0 interface, 20cm long
• TT motor: single Axis
• Suitable: 65mm TT motor wheel

How to Use Single Axis TT DC Gear Motor - 1:120, 3-6V, Metal Shaft

1. Connect the motor through the PH2.0 interface.
2. Apply a DC 3V-6V power supply.

More Info

• Single head D-axis output
• Suitable for 65mm TT motor wheel
