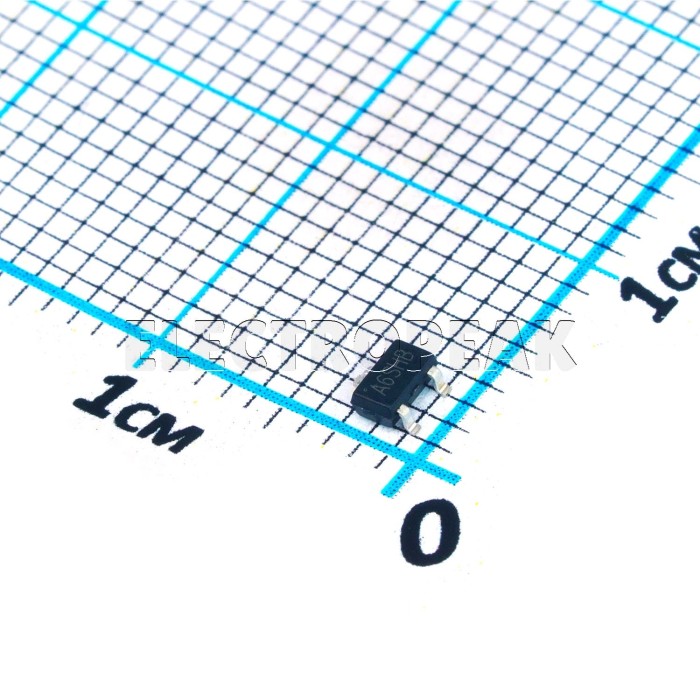

SI2306 A6SHB, MOSFET, SOT-23
$0.0160
In stock
SKU
S3-0002
Volume discounts:
- +500 6 % $0.0150
- +10000 13 % $0.0140
SI2306 A6SHB, MOSFET, SOT-23 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The SI2306 A6SHB is an N-Channel MOSFET in an SOT-23 package. It is defined by a 30 volts drain-source voltage and a 3.5 amperes drain current. The device has an on-state resistance of approximately 57 milliohms. It also features a maximum gate-source voltage of 20 volts. The operating temperature is up to 150°C. This MOSFET is suitable for switching applications where compact packaging and defined electrical limits are required.
Features of SI2306 A6SHB N-Channel MOSFET
- N-Channel MOSFET
- SOT-23 package
- 30 volts drain-source voltage
- 3.5 amperes drain current
- Approximately 57 milliohms RDS(on)
- Maximum 20 volts gate-source voltage
- Up to 150°C operating temperature
- 1.25 watts power dissipation
Specifications of SI2306 A6SHB N-Channel MOSFET
- Transistor type: N-Channel MOSFET
- Drain-source voltage (Vds): 30 volts
- Drain current (Id): 3.5 amperes
- Power dissipation (Pd): 1.25 watts
- On-state resistance (RDS(on)): Approximately 57 milliohms
- Gate-source voltage (Vgs): Maximum 20 volts
- Operating temperature: Up to 150°C
- Package: SOT-23
How to Use SI2306 A6SHB N-Channel MOSFET
- Select the SI2306 A6SHB for an application that matches its electrical limits.
- Install the device in an SOT-23 footprint.
- Operate it within the listed voltage, current, power, and temperature ratings.
More Info
- Product name: SI2306 A6SHB
- Device category: MOSFET
- Package format: SOT-23
| Package | SOT-23 |
|---|---|
| Mounting Type | SMD/SMT |
| Components - Type | MOSFET |
