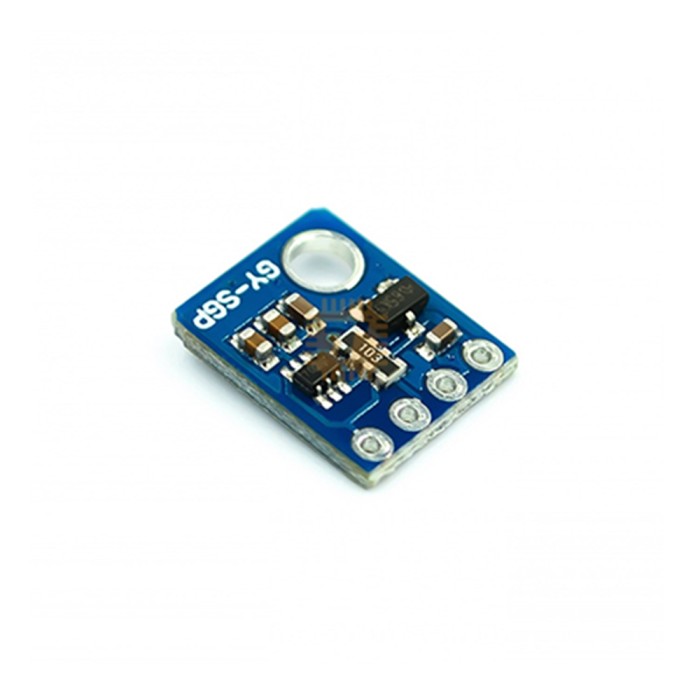

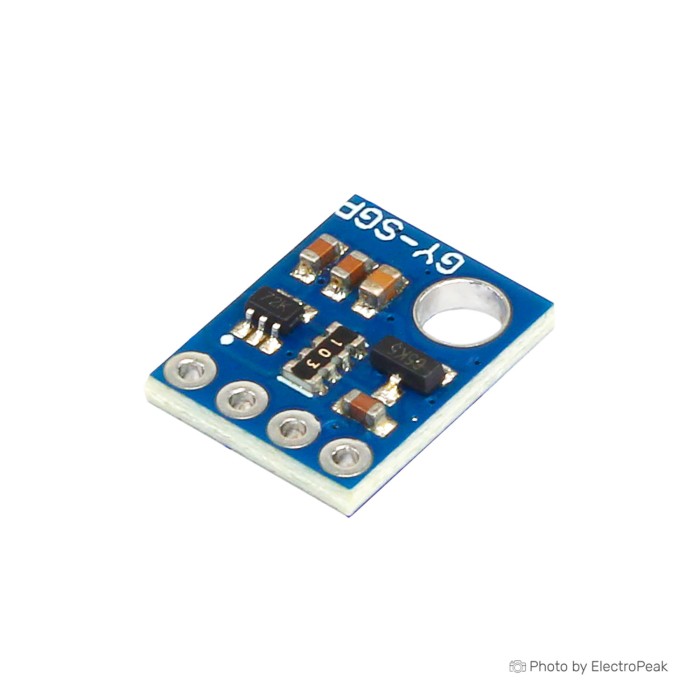

SGP30 Air Quality VOC and eCO2 Sensor Module
$6.9500
In stock
SKU
SEN-16-035
Volume discounts:
- +25 4 % $6.6700
- +50 6 % $6.5200
- +100 8 % $6.3800
- +300 10 % $6.2400
- +500 12 % $6.1000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Figaro TGS822 Alcohol Gas Module Previous
SGP30 Air Quality VOC And eCO2 Sensor Module is an air quality monitoring module based on the SGP30 sensor. It provides readings for TVOC and equivalent CO2 (eCO2). The module uses an I2C interface for data transfer and supports a 0x58 I2C address. It operates with a 2 to 5 V supply range. It is designed for indoor air quality monitoring, air purifiers, and smart ventilation projects. The module is also suitable for IoT-based air quality monitoring applications. Its low power consumption makes it suitable for portable and battery-powered devices.
Features of SGP30 Air Quality VOC And eCO2 Sensor Module
- TVOC and eCO2 measurement
- I2C communication interface
- 0x58 I2C address
- 2 to 5 V operation
- Low power consumption
- High measurement accuracy
- Long-term stability
Specifications of SGP30 Air Quality VOC And eCO2 Sensor Module
- Sensor model: SGP30
- Measured parameters: TVOC and eCO2
- Communication interface: I2C
- I2C address: 0x58
- Operating voltage: 2 to 5 V
- Operating temperature range: -40 to +85 °C
- Power consumption: Low
How to Use SGP30 Air Quality VOC And eCO2 Sensor Module
- Connect the module to a compatible I2C controller.
- Supply power within the 2 to 5 V range.
- Read the TVOC and eCO2 output values through I2C.
More Info
- Based on the SGP30 sensor
- Suitable for indoor air quality monitoring projects
- Useful in air purifiers and ventilation systems
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2 to 5 V |
| Operating Current (mA) | 48 mA |
| Operating Temp (°C) | -40 to 85 |
| Mounting Type | THT |
| Output Type | I2C |
| Biometric Parameter | Gas Concentration |
| Medical Certification | Consumer Grade |
| Application | Indoor air quality monitoring, Air purifiers, Air quality monitoring in new homes, Smart ventilation systems |
| Target Gas | Equivalent Carbon Dioxide (eCO2), Volatile Organic Compounds (TVOC) |
| Detection Range | TVOC: 0-60000 ppb, eCO2: 400-60000 ppm |
| Sensor Type | MOX gas sensors |
