HC-06 Bluetooth Serial Wireless Module
$4.5200
In stock
SKU
COM-02-004
Volume discounts:
- +25 4 % $4.3500
- +100 6 % $4.2600
- +300 8 % $4.1700
- +500 10 % $4.0900
- +1000 12 % $4.0000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

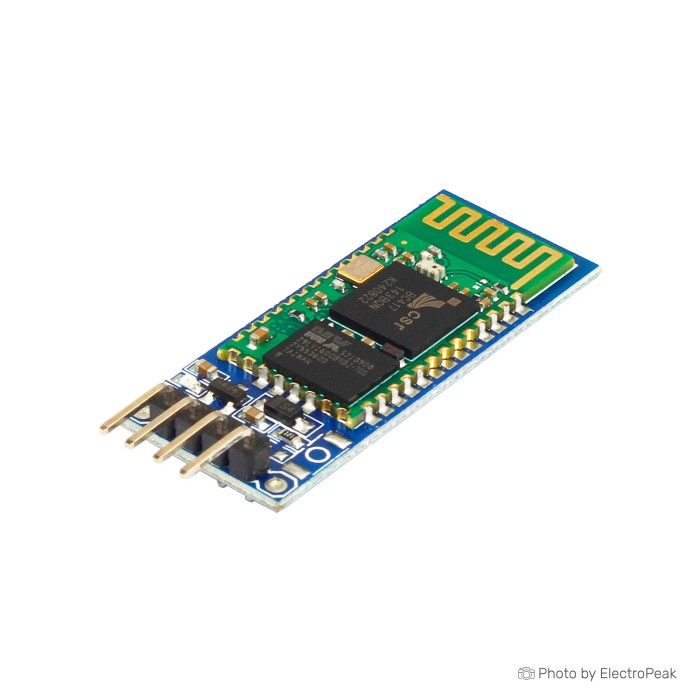

The HC-06 Bluetooth Serial Module is a serial port wireless module for Bluetooth communication in electronics and robotics projects. It provides a simple way to replace wired serial links with wireless communication. The module supports AT commands for configuration and control. It is mounted on an auxiliary board for easier operation. The board includes a voltage regulator and an LED for connection status.
This HC-06 Bluetooth Serial Module is designed for serial communication with MCU, GPS, computer, or mobile phone connections. It includes an internal antenna and a set of connection pins for Bluetooth wiring. The module supports Bluetooth serial use with a default baud rate of 9600. It is intended for use as a Bluetooth serial communication module with a compact hardware layout.
Features of HC-06 Bluetooth Serial Module
- Serial port wireless communication
- AT command control
- Auxiliary board included
- Voltage regulator on board
- LED connection indicator
- Internal antenna
- Bluetooth V2.0 + EDR support
- Re-search button included
- Bluetooth connection pins included
Specifications of HC-06 Bluetooth Serial Module
- Default baud rate: 9600
- Input voltage: 3.3 ~ 6 V
- Operating voltage: 3.3 V
- Coverage: 30ft
- Signal coverage: 30ft
- Bluetooth version: V2.0 + EDR
- Bluetooth version: 2.0 and earlier
- Weight: 9 grams
- Dimensions: 43x16x7 centimeters
- Hardware upgrade: V508
- Regulation chip: 150mA and 3.3 V
- Compatible with Bluetooth master module, slave module, or master-slave module
- Foot pins: VCC, GND, TXD, RXD
How to Use HC-06 Bluetooth Serial Module
- Connect the module through the VCC, GND, TXD, and RXD pins.
- Power the module within the specified voltage range.
- Use AT commands or the re-search button for configuration.
- Check the LED for connection status.
More Info
- The module is mounted on an auxiliary board for simpler use.
- The IC used in this model is BCXXX.
| Platform | Arduino Uno |
|---|---|
| Interface Type | UART |
| Operating Voltage (V) | 5V |
| Dimensions (mm) | 43x16x7 mm |
| Connector | Pin Header |
| Wireless Protocol | Bluetooth Classic |
| Frequency Band | 2.4GHz |
| Data transmission rate | 9600 bps |
| RF Modulation | GFSK |
| Range (m) | 10m |
| SIM Slots | 0 |
| Weight (g) | 9 |
| Chipset | BCXXX |
| Accessories | Baseboard |
| Modes | Master, Slave |
| Input Voltage (V) | 3.6-6V |
| Antenna Type | Internal Antenna |
| Baud Rate | 9600 |
