RX480E Wireless Receiving Module with Decoding- 4-way Output
SAVE
As low as $1.2500
In stock
Only %1 left
SKU
COM-06-027
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Universal Copy Electric Rolling Shutter Door- 433/315 MHz Previous

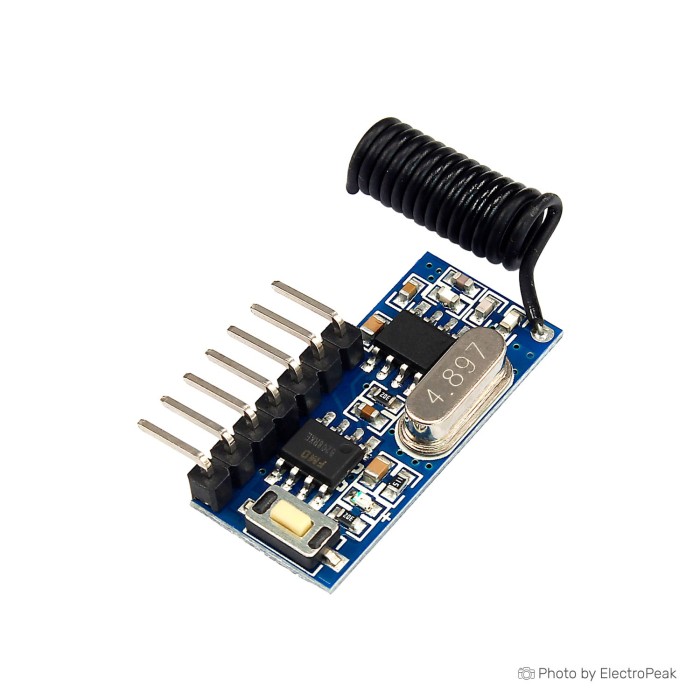

RX480E-4 Wireless Receiving Module with Decoding is a 4-channel remote receiver module for electronic and automation projects. It supports code learning and provides a 4-way output for remote control ABCD buttons. The module operates with a DC 2.5V to 5V working voltage and a 3mA working current. Its receiver sensitivity reaches -108DBM, and the data rate is up to 10KB/s. Three working modes are available: jog, self-lock, and interlock.
This RX480E-4 module provides a 4-channel CMOS level output. Learning and pairing are performed with the Learn button on the receiver. Existing data can be deleted before pairing new transmitters. Multiple transmitters with different IDs can be learned and stored. Different modes can be mixed as needed.
Features of RX480E-4 Wireless Receiving Module
- 4-channel remote reception
- Code learning support
- DC 2.5V to 5V operation
- 3mA working current
- -108DBM receiver sensitivity
- Up to 10KB/s data rate
- Jog mode
- Self-lock mode
- Interlock mode
- 4-channel CMOS level output
Specifications of RX480E-4 Wireless Receiving Module
- Model: RX480E-4
- Working voltage: DC2.5V-5V
- Working current: 3MA
- Sensitivity: -108DBM
- Rate: MAX 10KB / S.
- Working mode: point movement, self-locking, interlocking
- Output: The 4-channel CMOS level signal corresponds to the remote control ABCD 4 button.
How to Use RX480E-4 Wireless Receiving Module
- Press the Learn button 8 times to delete existing data.
- Press the Learn button once, twice, or three times to set the mode.
- Wait for the LED to light up, then press any button on the remote control to pair.
- Confirm the LED flashes three times to complete learning.
- Test the receiving board with the remote controller after pairing.
More Info
- More transmitters with different IDs can be learned and stored.
- Different modes can be mixed.
- The receiver output can be connected to a microcontroller or relay module.
- Do not connect the output directly to a relay.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 2.5V-5V |
| Operating Current (mA) | 3 mA |
| Mounting Type | THT |
| Wireless Protocol | RF (Radio Frequency) |
| Frequency Band | 433/315 MHz |
| Data transmission rate | 10 kbps |
| RF Modulation | ASK |
| TX Power (dBm) | No |
| SIM Slots | 0 |
| Chipset | RX480E-4 |
| Modes | Momentary (Jog), Interlocking, Self-locking |
| Application | Home automation |
| Receiver Sensitivity | -108 dBm |
