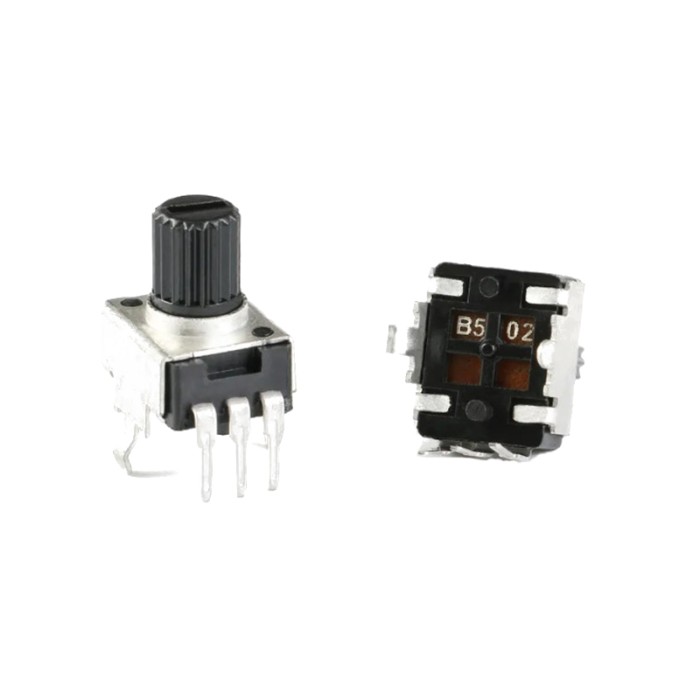

RV0932 Potentiometer- Vertical (Short Shaft)

$0.0375
In stock
SKU
P3-0101
RV0932 Potentiometer- Vertical (Short Shaft) is available to buy in increments of 20
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
RV0932 Potentiometer- Vertical (Long Shaft) Previous RV0932 Potentiometer- Vertical (Long Shaft)

The RV0932 Potentiometer - Vertical (ShortShaft) is a reliable and durable component designed for precise control in various electronic applications. With a Short shaft for easy adjustment, this potentiometer offers a total rotation of 280±5 degrees and features a rotational torque between 1 and 8 N.m. It operates within a voltage range of 50VAC/20VDC and has a rated power of 0.05W, making it suitable for a variety of settings. The potentiometer also boasts a robust push-pull strength of 50N and low slide noise, ensuring smooth and stable performance.

Specifications of RV0932 Potentiometer - Vertical (Short Shaft)

  • Total Length: 15mm

  • Handle Length: 7.5mm

  • Total Rotation: 280±5 degrees

  • Rotational Torque: 1~8 N.m

  • Push-Pull Strength: 50N

  • Tolerance: ±20%

  • Rated Power: 0.05W

  • Operating Voltage: 50VAC / 20VDC

  • Resistance Taper: A, B, C

  • Slide Noise: <100mV

  • Withstand Voltage: 1 minute at 250VAC

  • Dimensions: 12.5x9.8x15mm (LxWxH)

Datasheet of RV0932 Potentiometer - Vertical (Short Shaft)

RV09 Series Rotary Potentiometer Datasheet
