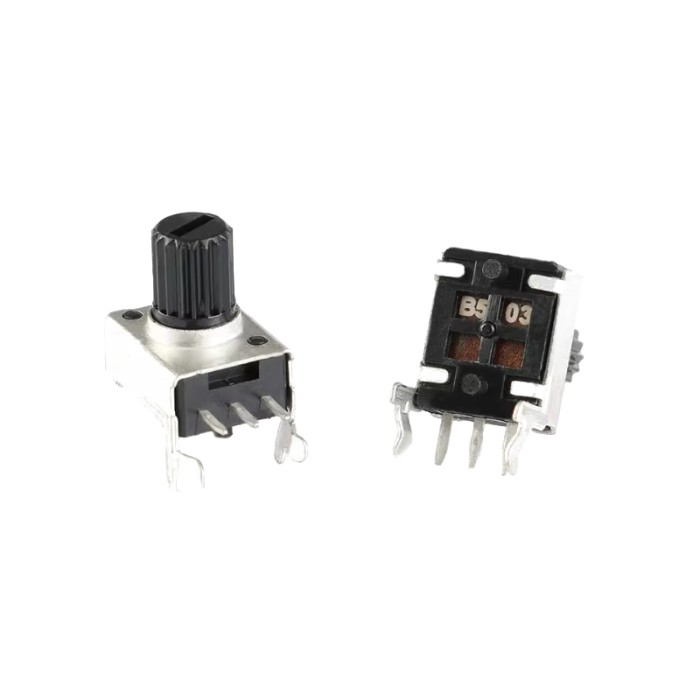

RV0931 Potentiometer- Right (Short Shaft) - Pack of 25

The RV0931 Potentiometer - Right (Short Shaft) is a reliable and durable component designed for precise control in various electronic applications. With a Short shaft for easy adjustment, this potentiometer offers a total rotation of 280±5 degrees and features a rotational torque between 1 and 8 N.m. It operates within a voltage range of 50VAC/20VDC and has a rated power of 0.05W, making it suitable for a variety of settings. The potentiometer also boasts a robust push-pull strength of 50N and low slide noise, ensuring smooth and stable performance.

Specifications of RV0931 Potentiometer - Right (Short Shaft)

• Total Length (Short Handle): 15mm
• Handle Length: 7.5mm
• Total Rotation: 280±5 degrees
• Rotational Torque: 1~8 N.m
• Push-Pull Strength: 50N
• Tolerance: ±20%
• Rated Power: 0.05W
• Operating Voltage: 50VAC / 20VDC
• Resistance Taper: A, B, C
• Slide Noise: <100mV
• Withstand Voltage: 1 minute at 250VAC
• Dimensions: 9.8x17.5x15.6mm (LxWxH)

Datasheet of RV0931 Potentiometer - Right (Short Shaft)

RV09 Series Rotary Potentiometer Datasheet
