RS232 to Terminal Serial Port DB9 Adapter
SAVE
As low as $0.4500
In stock
Only %1 left
SKU
COM-05-079
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PCA9306 Bidirectional I2C Bus/SMBus Voltage Level Converter Previous

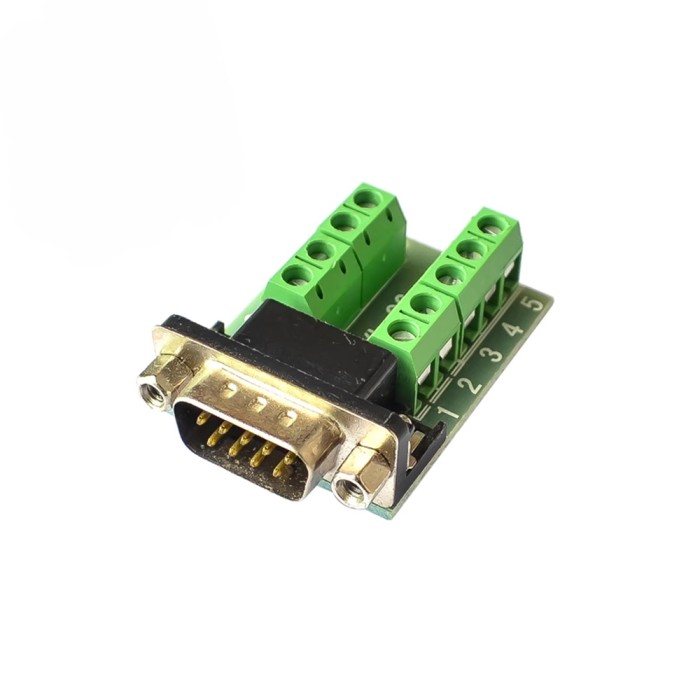

This is a DB9 female/male adapter plate signal module, RS232 Serial DB9 9-pin to 9 Position Screw Terminal Block. Connector DB9 adapter terminals to facilitate commissioning equipment of project. The wire range of the 9 Positions Screw Terminal Block is 22-14AWG. All-copper DB9 Socket, anti-oxidation, contact better. Terminal pitch is 3.96mm, screw hole diameter is 2mm, need to use a slotted screwdriver width 2mm be removable.
Features of RS232 to Terminal Serial Port DB9 Adapter:
- High quality All-copper DB9 socket, high-quality terminals
- Adapter used for communication debug
- Material: Metal/Plastic
Specifications of RS232 to Terminal Serial Port DB9 Adapter:
- Terminal pitch: 3.96mm
- Screw hole diameter: 2mm
- Size: 3.5cmx3cmx1cm
- Male, Female (Optional)
- num of pins: 9 Pins
| Interface Type | RS232 |
|---|---|
| Dimensions (mm) | 41x33x15mm, 46x33x15mm |
| Mounting Type | Screw Terminal |
| Standard | RS232 |
| Pins | 9 |
