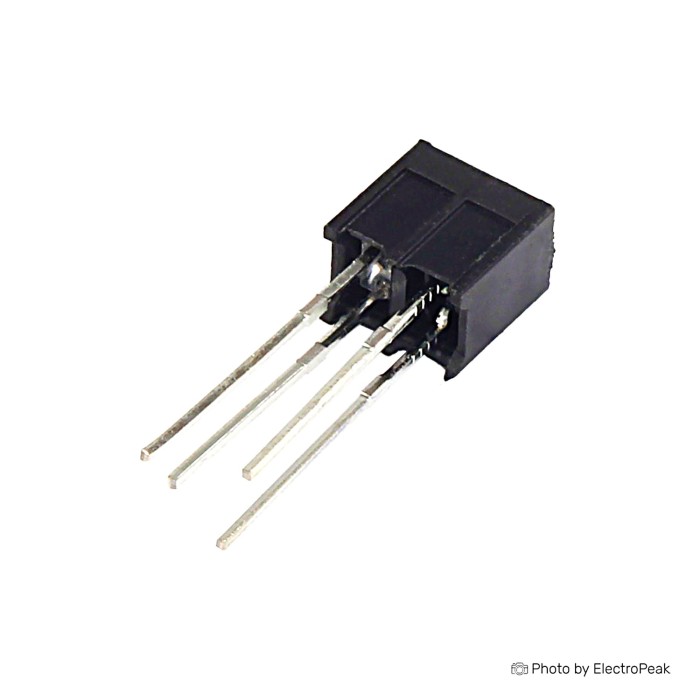

RPR220 Reflective Infrared Photoelectric Switch Sensor
$0.1800
In stock
SKU
SEN-05-023
Volume discounts:
- +100 6 % $0.1700
- +1000 11 % $0.1600
RPR220 Reflective Infrared Photoelectric Switch Sensor is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CNY70 Reflective Optical Sensor Switch Previous
RPR220 is a kind of integration reflection type photoelectric detector.
Mainly used in the game, copy machines and office automation, equipment.
The transmitter is a gallium arsenide infrared light emitting diode, and receiver is a high sensitivity, silicon plane photoelectric triode.
Specification of RPR220 Reflective Infrared Photoelectric Switch Sensor:
- Product Name : Optical Sensor Switch
- Model : RPR220
- Color : Black
- Net Weigh : 3g
- Material : Plastic, Metal
- Detection Distance：1-13mm
- Working Voltage:DC 30V(Max)
- Output Type:Photo Transistor
- Output:30mA(Max)
- Number of Pins:4
- Pin Length:16.3mm
- Black Head Size :6.5 x 4.9 x 6.5mm
- Total Size:22.8 x 4.9 x 6.3mm
- Detection distance is not adjustable
- Detection object ：opaque objects
| Operating Voltage (V) | 30V (Max) |
|---|---|
| Dimensions (mm) | 6.4x4.8x6.5 mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Phototransistor |
| Detection Distance | 1-13 mm |
| Sensing Method | Infrared (IR) |
| Weight (g) | 3 |
| Chipset | RPR220 |
| Max Output (A) | 30mA (Max) |
| Sensor Model | RPR220 |
