RGB Audio Spectrum Display Module
$3.2500
In stock
SKU
MOD-04-033
Volume discounts:
- +25 4 % $3.1200
- +100 6 % $3.0600
- +300 8 % $2.9900
- +500 10 % $2.9300
- +1000 12 % $2.8700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CJMCU-9812 MAX9812L Electret Microphone Previous

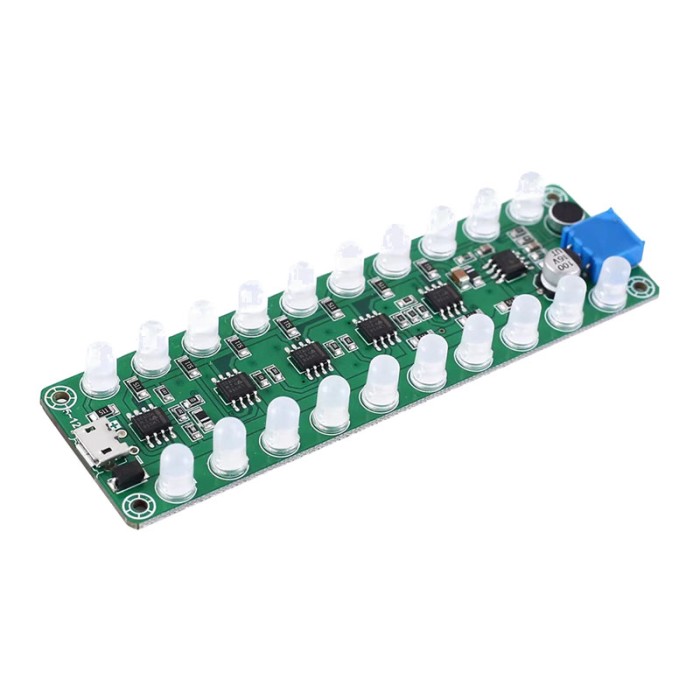

The RGB Audio Spectrum Display Module is an audio-reactive lighting module for color-changing visual effects. It operates on DC 5V to 12V and uses 5mm RGB LEDs to respond to sound input from a built-in microphone. Power can be supplied through pads or a Micro USB port. Its compact form factor supports integration into a range of electronics and lighting projects. This module is designed for dynamic sound-based light displays.
Features of RGB Audio Spectrum Display Module
- Audio-reactive lighting
- Built-in microphone
- 5mm RGB LEDs
- Pad power input
- Micro USB power input
Specifications of RGB Audio Spectrum Display Module
- Operating Voltage: DC 5V~12V
- LED Type: 5mm RGB
- Voltage Input Type: Pads and Micro USB
- Audio Input: Microphone
- Operating Temperature: -25℃ to 85℃
- Operating Humidity: 5% to 95%RH
- Dimensions: 100x30x12mm
How to Use RGB Audio Spectrum Display Module
- Connect power through the pads or the Micro USB port.
- Provide audio input through the built-in microphone.
- Use the module in your lighting or electronics project.
More Info
- Compact module format
- Suitable for sound-based light displays
| Interface Type | USB |
|---|---|
| Operating Voltage (V) | DC 5V-12V |
| Operating Temp (°C) | -25℃ to 85℃ |
| Dimensions (mm) | 100x30x12mm |
| Mounting Type | Soldering |
| Audio Function | Microphone |
| Input Types | Microphone,Micro USB,Pads |
| Humidity Range | 5% to 95%RH |
